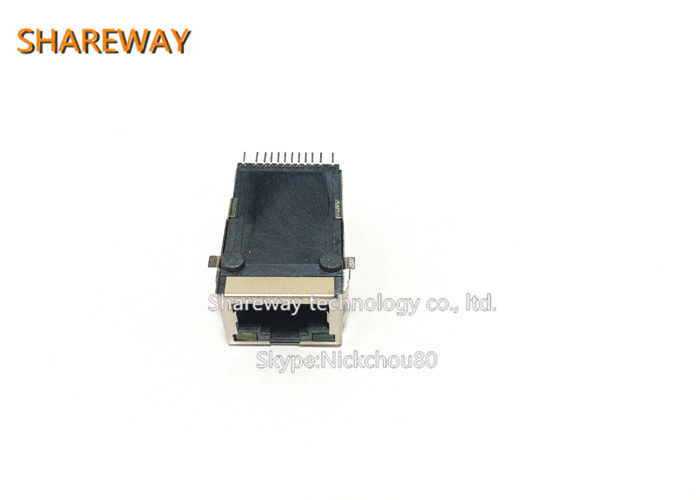

J3026G01DNL Fast Ethernet Surface Mount RJ45 Modular Jack

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: J3026G01DNL

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Tray or Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

dual rj45 jack

,

pcb mount rj45 jack

Product Name:
J3026G01DNL Fast Ethernet Surface Mount RJ45 Modular Jack
Product Name:
J3026G01DNL Fast Ethernet Surface Mount RJ45 Modular Jack
J3026G01DNL Fast Ethernet Surface Mount RJ45 Modular Jack

J3026G01DNL Fast Ethernet Surface Mount RJ45 Modular Jack


Product Description:

  • 100 Base-TX (Fast Ethernet) RJ45 Jack
  • surface mount RJ45 Jack
  • single port (1x1) RJ45 Jack
  • Tab-UP/DOWN RJ45 Jack
  • with or without LEDS Integrated Magnetics Connector
  • designed to support applications such as: Set Top Box and Network Interface Cars (NIC).


Features and Benefits:

  • RoHS peak wave reflow temperature rating 245°C
  • J0C SMT product, reduced size and low cost alternative to JV series
  • Meets IEEE 802.3 specification
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement



Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C
RoHS
Compliant
Part Number
(Number of Ports)
Turns
Ratios
Tab
Option
up/down
LEDs
L/R
Insertion
Loss
(dB TYP)
Return Loss
(dB TYP)
100Ω (±15Ω)
Crosstalk
(dB MIN)
Common Mode
Rejection
(dB TYP)
TXRX1-65
MHz
1-10
MHz
10-30
MHz
30-60
MHz
30-60
MHz
60-100
MHz
1-50
MHz
50-150
MHz
@60Hz
1 MIN
J0C-0003NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
J0C-0004NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
J0C-0005NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
J0C-0006NL1CT:11CT:1DownNo-1.0-18-14-10-35-35-30-20-20
JV006I21NL1CT:11CT:1DownNo-1.0-20-16-12-40-35-30-30-20
JV011I21NL1CT:11CT:1DownNo-1.0-20-16-12-40-35-30-30-20
JV026I21NL1CT:11CT:1DownNo-1.0-20-16-12-40-35-30-30-20
J3011G21DNL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20
J3026G01DNL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20
J3026G21DNL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20
JX30-0005NL1CT:11CT:1upG/Y-1.0-20-16-12-40-35-30-30-20

Notes:
1. LEDs Left/Right: G = green; Y = yellow.
2. Extended Temperature: -40° to 85° C



RJ45 Durability Test Rating
Part NumberMating Force
(MAX)
Unmating Force
(MAX)
DurabilityPlug to Jack
Retention (MIN)
J0C/JV/J3 Series5 Ibs./2.268 kgs.5 Ibs./2.268 kgs.750 Insertions20 Ibs./9.072 kgs.




RJ45 Material Specification
Part
Number
ShieldContactHousing
MaterialFinishMaterialPlating AreaSolder AreaMaterialSpecification
J0C/JV/J3
Series
Brass20-40μ inches thick
nickel over Brass
Phosphor
Bronze
(X)μ inches gold over
30-80μ inches nickel
Tin matte finishHigh Temp.
Thermoplastic
UL 94 V-0



J3026G01DNL Fast Ethernet Surface Mount RJ45 Modular Jack










J3026G01DNL Fast Ethernet Surface Mount RJ45 Modular Jack
