B82793K0602N201 Common Mode Choke Data and signal line chokes

B82793K0602N201 Common Mode Choke Data and signal line chokes


Construction

  • Current-compensated double choke
  • Ferrite core
  • LCP case (UL 94 V-0), silicone potting
  • Bifilar winding (B82793C0/K0)
  • Sector winding (B82793S0/L0)

Applications

  • Automotive applications, e.g. CAN bus
  • Industrial applications
  • Types with LR > 4.7 mH only for telecom applications

Terminals

  • Base material CuSn6
  • Layer composition Ni, Sn
  • Hot-dipped



Part NO. LR
mH
Lstray,typ
nH
IR
mA
Rtyp
Vtest
V DC, 2 s
B82793C0502N201 0.005 40 1200 60 250
B82793K0602N201 0.006 30 2000 20 250
B82793L0602N201 0.006 250 2000 20 250
B82793C0113N201 0.011 50 800 80 250
B82793C0253N201 0.025 60 800 110 250
B82793S0253N201 0.025 1400 800 110 250
B82793C0513N201 0.051 70 800 140 250
B82793S0513N201 0.051 2300 800 140 250
B82793C0104N201 0.10 100 500 180 250
B82793C0474N215 0.47 100 700 170 750
B82793C0105N265 1.0 70 700 140 750
B82793C0225N265 2.2 120 500 400 750
B82793C0475N265 4.7 2500 400 550 750
For telecommunications
B82793C0206N265 20 300 100 1800 750
B82793C0476N265 47 1200 100 3700 750





Technical data and measuring conditions:

Rated voltage VR 42 V AC (50/60 Hz) / 80 V DC
Rated temperature TR 60 °C
Rated current IR Referred to 50 Hz and rated temperature
Rated inductance LR Measured with Agilent 4284A, 0.1 mA, 20 °C
Measuring frequency: LR ≤ 1 mH = 100 kHz
LR > 1 mH = 10 kHz
Inductance is specified per winding.
Inductance tolerance ±30% (LR ≤ 0.47 mH), –30/+50% (LR ≥ 1 mH) at 20 °C
Inductance decrease ΔL/L < 10% at DC magnetic bias with IR, 20 °C
Stray inductance Lstray,typ Measured with Agilent 4284A, 5 mA, 20 °C, typical values
Measuring frequency: LR ≤ 11 μH = 1 MHz
LR > 11 μH = 100 kHz
DC resistance Rtyp Measured at 20 °C, typical values, specified per winding
Solderability SnPb: (215 ±3) °C, (3 ±0.3) s
Sn96.5Ag3.0Cu0.5: (245 ±5) °C, (3 ±0.3) s
Wetting of soldering area ≥ 95%
(to IEC 60068-2-58)
Resistance to soldering heat (260 ±5) °C, (10 ±1) s (to IEC 60068-2-58)
Climatic category
Climatic category 40/125/56 (to IEC 60068-1)
Storage conditions (packaged) –25 °C … +40 °C, ≤ 75% RH
Weight Approx. 0.25 g





B82793K0602N201 Common Mode Choke Data and signal line chokes


Shape and Dimensions:

B82793K0602N201 Common Mode Choke Data and signal line chokes 0

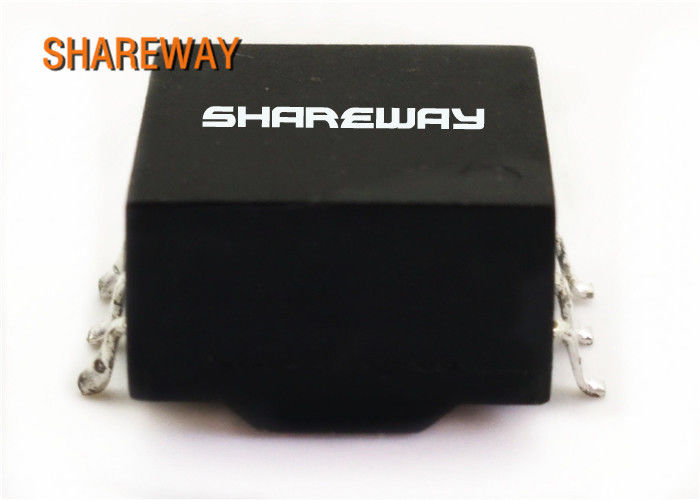

Product picture:
