Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: B82793C0475N265
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 1500 pcs/reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
B82793C0475N265 Common Mode Choke Power Inductor Coil With Base For EMI |
Application: |
Power Line Noise Countermeasure For Various Electronic Equipment |
Rated Current: |
400mA |
Operating Temperature Range: |
60 °C |
Rated Voltage: |
750V |
Impedance: |
10 KHz -100 KHz |
Product Name: |
B82793C0475N265 Common Mode Choke Power Inductor Coil With Base For EMI |
Application: |
Power Line Noise Countermeasure For Various Electronic Equipment |
Rated Current: |
400mA |
Operating Temperature Range: |
60 °C |
Rated Voltage: |
750V |
Impedance: |
10 KHz -100 KHz |
B82793C0475N265 Common Mode Choke Power Inductor Coil with Base for EMI
Construction
Features
Function
Applications
Terminals
| Part NO. | LR mH |
Lstray,typ nH |
IR mA |
Rtyp mΩ |
Vtest V DC, 2 s |
| B82793C0502N201 | 0.005 | 40 | 1200 | 60 | 250 |
| B82793K0602N201 | 0.006 | 30 | 2000 | 20 | 250 |
| B82793L0602N201 | 0.006 | 250 | 2000 | 20 | 250 |
| B82793C0113N201 | 0.011 | 50 | 800 | 80 | 250 |
| B82793C0253N201 | 0.025 | 60 | 800 | 110 | 250 |
| B82793S0253N201 | 0.025 | 1400 | 800 | 110 | 250 |
| B82793C0513N201 | 0.051 | 70 | 800 | 140 | 250 |
| B82793S0513N201 | 0.051 | 2300 | 800 | 140 | 250 |
| B82793C0104N201 | 0.10 | 100 | 500 | 180 | 250 |
| B82793C0474N215 | 0.47 | 100 | 700 | 170 | 750 |
| B82793C0105N265 | 1.0 | 70 | 700 | 140 | 750 |
| B82793C0225N265 | 2.2 | 120 | 500 | 400 | 750 |
| B82793C0475N265 | 4.7 | 2500 | 400 | 550 | 750 |
| For telecommunications | |||||
| B82793C0206N265 | 20 | 300 | 100 | 1800 | 750 |
| B82793C0476N265 | 47 | 1200 | 100 | 3700 | 750 |
B82793C0475N265 Common Mode Choke Power Inductor Coil with Base for EMI
Shape and Dimensions:

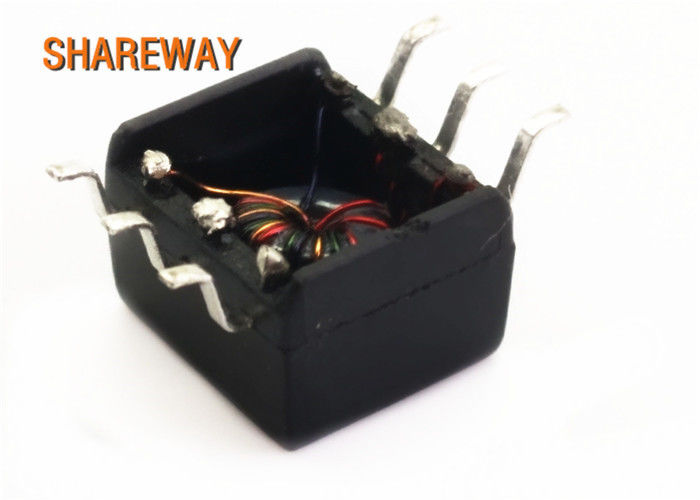

Product picture:
B82793C0475N265 Common Mode Choke Power Inductor Coil with Base for EMI
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
