B82793C0104N201 SMD Common Mode Choke For telecom applications

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: B82793C0104N201

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 1500 pcs/reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal,

Supply Ability: 5000K.PCS/Month

Get Best Price
Highlight:

telecom common mode choke

,

rohs compatible common mode choke

Product Name:
B82793C0104N201 SMD Common Mode Choke For Telecom Applications
Type:
Ring Core
Wire:
100% Copper Wire
Max Temperature:
60 Degree C
Application:
EMI/EMC Filter
Usage:
Common Mode Choke
Product Name:
B82793C0104N201 SMD Common Mode Choke For Telecom Applications
Type:
Ring Core
Wire:
100% Copper Wire
Max Temperature:
60 Degree C
Application:
EMI/EMC Filter
Usage:
Common Mode Choke
B82793C0104N201 SMD Common Mode Choke For telecom applications

B82793C0104N201 SMD Common Mode Choke For telecom applications


Construction

  • Current-compensated double choke
  • Ferrite core
  • LCP case (UL 94 V-0), silicone potting
  • Bifilar winding (B82793C0/K0)
  • Sector winding (B82793S0/L0)

Features

  • High rated currents, reduced components height
  • Qualified to AEC-Q200 (L ≤ 4.7 mH)
  • Suitable for reflow soldering
  • RoHS-compatible

Applications

  • Automotive applications, e.g. CAN bus
  • Industrial applications
  • Types with LR > 4.7 mH only for telecom applications

Terminals

  • Base material CuSn6
  • Layer composition Ni, Sn
  • Hot-dipped



Part NO. LR
mH
Lstray,typ
nH
IR
mA
Rtyp
Vtest
V DC, 2 s
B82793C0502N201 0.005 40 1200 60 250
B82793K0602N201 0.006 30 2000 20 250
B82793L0602N201 0.006 250 2000 20 250
B82793C0113N201 0.011 50 800 80 250
B82793C0253N201 0.025 60 800 110 250
B82793S0253N201 0.025 1400 800 110 250
B82793C0513N201 0.051 70 800 140 250
B82793S0513N201 0.051 2300 800 140 250
B82793C0104N201 0.10 100 500 180 250
B82793C0474N215 0.47 100 700 170 750
B82793C0105N265 1.0 70 700 140 750
B82793C0225N265 2.2 120 500 400 750
B82793C0475N265 4.7 2500 400 550 750
For telecommunications
B82793C0206N265 20 300 100 1800 750
B82793C0476N265 47 1200 100 3700 750







B82793C0104N201 SMD Common Mode Choke For telecom applications


Shape and Dimensions:

B82793C0104N201 SMD Common Mode Choke For telecom applications 0





Product picture:

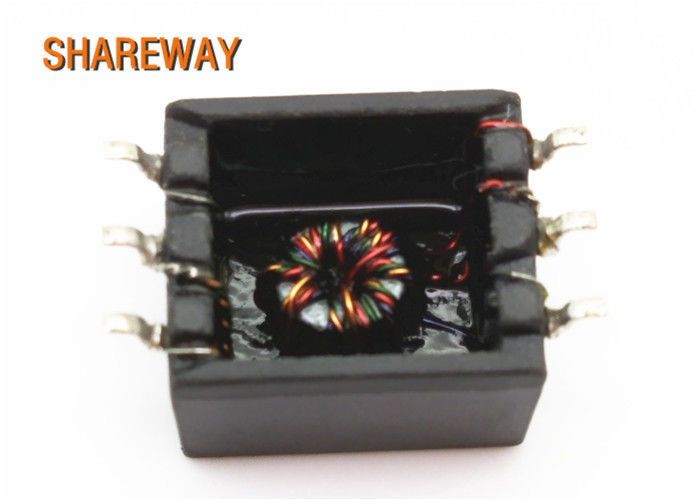

B82793C0104N201 SMD Common Mode Choke For telecom applications 1
