WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer

WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer
WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer

Large Image :  WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: WB1010-SML

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Detailed Product Description
Product Name: WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer Mount: Surface Mount / Through Hole Versions
RF Input Power: 1/4 Watt Interwinding Isolation: 500 V
Current Rating: 250 MA Size: 8.26mm*7.24mm*5.72

WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer


Power type driver transformer:

  • Frequency range: 0.005 – 100MHz
  • Pri (pins 1–3): 780(μH) , 0.320Ohms
  • Sec (pins 6–4): 780(μH) , 0.320Ohms
  • Output current: 250A
  • Impedance ratio2:  1 : 1


Feature:

  • Surface mount and through hole versions
  • 500 V interwinding isolation, 1/4 Watt RF input power
  • 250 mA max current rating.
  • small package size


Core material:  Ferrite
Terminations:  RoHS compliant matte tin over nickel over  phosbronze. Other terminations
                      available at additional cost.
Weight :  0.37 – 0.39 g
Ambient temperature:  –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat : Max three 40 second reflows at
                             +260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL): 1 (unlimited floor life at <30°C /
                             85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
                              60 per billion hours / 16,666,667 hours, calculated per Telcordia SR-332
Packaging (SM version): 500 per 13″ reel;



Testing Items:

  • Turns Ratio
  • Inductance
  • Phase Test
  • DC resistance test
  • Safety test
  • High voltage test



Applications:

  • TV sets, Microcomputer equipment, printers, Terminals
  • Charge
  • UPS, VCD/DVD players, audio and visual equipment
  • lighting fixture
  • Medical electronics
  • Power supplies
  • meters and equipments product
  • current control and heat dissipation



Part number

Impedance
ratio2
pri : sec

IDC max
(mA)
Frequency
(MHz)
Pri (pins 1–3)Sec (pins 6–4)
Through-holeSurface mount

L min3
(μH)

DCR max
(Ohms)

L min3
(μH)

DCR max
(Ohms)

WB1010-PCLWB1010-SML_1 : 12500.005 – 1007800.3207800.320
WB1010-1-PCLWB1010-1-SML_1 : 12500.04 – 175950.200950.200
WB1015-PCLWB1015-SML_1.5 : 12500.1 – 150800.145510.130
WB1040-PCLWB1040-SML_4 : 12500.2 – 300950.160250.115
WB2010-PCLWB2010-1-SML_1 : 12500.005 – 1007800.3207800.320
WB2010-1-PCLWB2010-1-SML_1 : 12500.04 – 175950.200950.200
WB2040-PCLWB2040-SML_4 : 12500.2 – 300950.160250.115
WB3010-PCLWB3010-SML_1 : 12500.005 – 1007800.3207800.320
WB3010-1-PCLWB3010-1-SML1 : 12500.04 – 175950.200950.200
WB3015-PCLWB3015-SML_1.5 : 12500.1 – 150800.145510.130
WB3040-PCLWB3040-SML_4 : 12500.2 – 300950.160250.115




WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer


Shape and Dimensions:
WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer 0

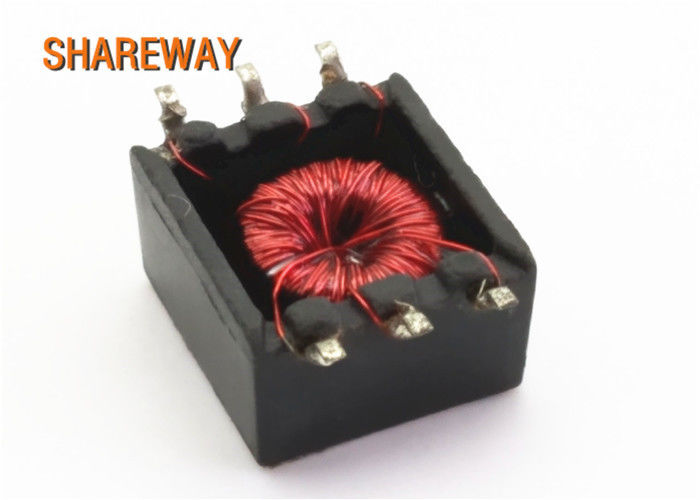

Product picture:
WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer 1


WB1010-SML Surface Mount Wideband RF Transformers Gate Drive Transformer


HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.

Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs

Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
