WB1040-SML SMD Single Phase Electrical Gate Drive Transformer

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

WB1040-SML SMD Single Phase Electrical Gate Drive Transformer

WB1040-SML SMD Single Phase Electrical Gate Drive Transformer
WB1040-SML SMD Single Phase Electrical Gate Drive Transformer

Large Image :  WB1040-SML SMD Single Phase Electrical Gate Drive Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: WB1040-SML

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Detailed Product Description
Product Name: WB1040-SML SMD Single Phase Electrical Gate Drive Transformer Usage: Electronics/Electrical
Phase: Single Type: Transformer
Application: Television Receiver ,Monitor,audio,VCD,DCD Etc. Samples: Free Samples

WB1040-SML SMD Single Phase Electrical Gate Drive Transformer


Core material: Ferrite
Terminations: RoHS compliant matte tin over nickel over phosbronze. Other terminations
available at additional cost.
Weight : 0.37 – 0.39 g
Ambient temperature: –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat : Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL): 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
60 per billion hours / 16,666,667 hours, calculated per Telcordia SR-332
Packaging (SM version): 500 per 13″ reel;





Series Feature
EETransformer applied in the switching power supply,main power transformer
EF Transformer applied in the switching power supply,main power transformer
EFD Transformer Auxiliary powr transformer,main power transformer,choke coils
EPC Transformer Auxiliary powr transformer,main power transformer
PQ Transformer applied in the linear filter,choke,pulse transformer,drive transformer
UU Transformer varieties of switching power supply transformer,coke coils et
EC/EER/ER Transformer applied in the linear filter ,current tranformer,smoothing choke coil,drive transformer, switching power transformers and chokes
RM Transformer filters, inductors and transformers for telecommunication other electronic equipment
POT Transformer filters for telecommunication equipment,and various kinds of inductors and transformers
DR Core Choke coils, Peaking coils, Linearity coils, Alarm coils, Power choke coils, Fixed choke coils, Filtering coils,etc;
EI Transformer Various kinds of transformers and chokes.
TOROIDAL core Pulse and wide-band transformers, various types of filters, inductors and chokes.







Part number Impedance
ratio2
pri : sec
IDC max
(mA)
Frequency
(MHz)
Pri (pins 1–3) Sec (pins 6–4)
Through-hole Surface mount L min3
(μH)
DCR max
(Ohms)
L min3
(μH)
DCR max
(Ohms)
WB1010-PCL WB1010-SML_ 1 : 1 250 0.005 – 100 780 0.320 780 0.320
WB1010-1-PCL WB1010-1-SML_ 1 : 1 250 0.04 – 175 95 0.200 95 0.200
WB1015-PCL WB1015-SML_ 1.5 : 1 250 0.1 – 150 80 0.145 51 0.130
WB1040-PCL WB1040-SML_ 4 : 1 250 0.2 – 300 95 0.160 25 0.115
WB2010-PCL WB2010-1-SML_ 1 : 1 250 0.005 – 100 780 0.320 780 0.320
WB2010-1-PCL WB2010-1-SML_ 1 : 1 250 0.04 – 175 95 0.200 95 0.200
WB2040-PCL WB2040-SML_ 4 : 1 250 0.2 – 300 95 0.160 25 0.115
WB3010-PCL WB3010-SML_ 1 : 1 250 0.005 – 100 780 0.320 780 0.320
WB3010-1-PCL WB3010-1-SML 1 : 1 250 0.04 – 175 95 0.200 95 0.200
WB3015-PCL WB3015-SML_ 1.5 : 1 250 0.1 – 150 80 0.145 51 0.130
WB3040-PCL WB3040-SML_ 4 : 1 250 0.2 – 300 95 0.160 25 0.115





WB1040-SML SMD Single Phase Electrical Gate Drive Transformer


Shape and Dimensions:

WB1040-SML SMD Single Phase Electrical Gate Drive Transformer 0

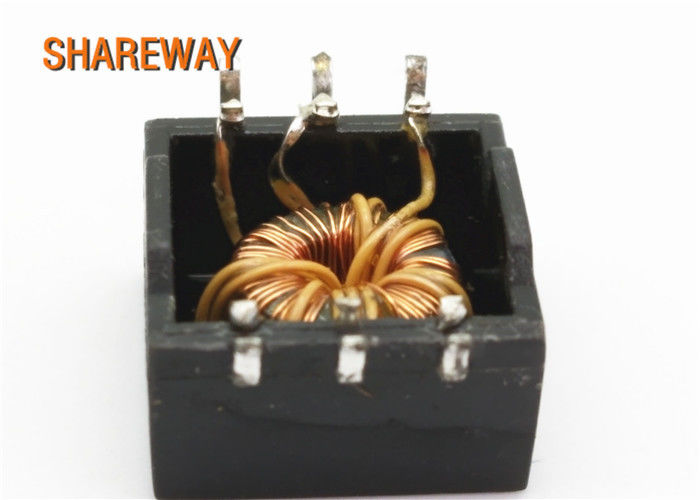

Product picture:
