Product Name: |
JA4220-AL Gate Drive Transformer SMT Mini Wideband Transformer |
Type: |
Mini Wideband Transformer |
Current Rating: |
250 MA Max |
Input Power Rating: |
1/4 Watt |
Base: |
With |
Core Material: |
Ferrite |
Product Name: |
JA4220-AL Gate Drive Transformer SMT Mini Wideband Transformer |
Type: |
Mini Wideband Transformer |
Current Rating: |
250 MA Max |
Input Power Rating: |
1/4 Watt |
Base: |
With |
Core Material: |
Ferrite |
JA4220-AL Gate Drive Transformer SMT Mini Wideband Transformer
Feature:
Core material: Ferrite
Terminations: RoHS compliant tin-silver-copper over silver-platinumglass
frit. Other terminations available at additional cost.
Weight: 83.3 mg
Interwinding isolation: 300 V
Ambient temperature: –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat: Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
|
Part number1 |
Impedance ratio pri : sec |
Bandwidth (MHz) |
Insertion loss max (dB) |
Pins 1– 4 | Pins 2– 3 | ||
|
L min3 (μH) |
DCR max4 (mOhm) |
L min3 (μH) |
DCR max4 (mOhm) |
||||
| JA4220-AL_ | 1 : 1 | 0.1 – 3500 | 0.2 | 15 | 120 | 15 | 120 |
JA4220-AL Gate Drive Transformer SMT Mini Wideband Transformer
Shape and Dimensions:

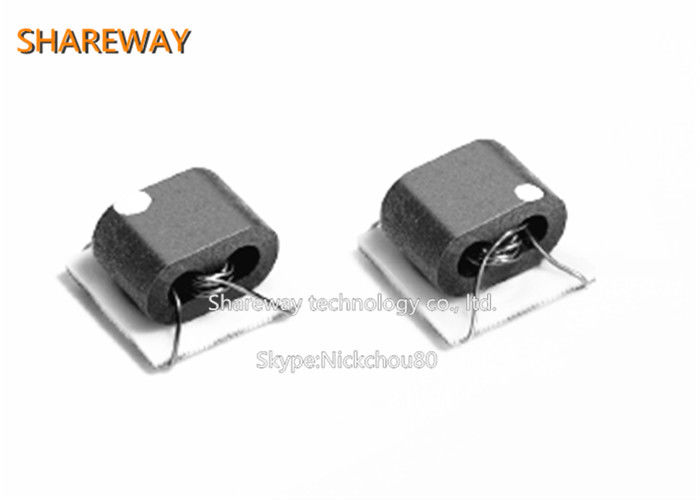

Product picture:
