Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 1812WBT-1L_
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 2200/reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
1812WBT-1L_ Gate Drive Transformer Surface Mount Wideband RF Transformers |
Type: |
Wideband RF Transformers |
Mount: |
Surface Mount |
Application: |
Satellite STB Subscriber Applications |
Size: |
3.81mm*4.95mm*3.43mm |
Imp. Ratio: |
1:1 |
Product Name: |
1812WBT-1L_ Gate Drive Transformer Surface Mount Wideband RF Transformers |
Type: |
Wideband RF Transformers |
Mount: |
Surface Mount |
Application: |
Satellite STB Subscriber Applications |
Size: |
3.81mm*4.95mm*3.43mm |
Imp. Ratio: |
1:1 |
1812WBT-1L_ Gate Drive Transformer Surface Mount Wideband RF Transformers
Feature:
Core material Ferrite
Terminations RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight 131 – 152 mg
Ambient temperature –40°C to +85°C with Irms current
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
|
Part number |
Inductance (μH) |
Test frequency (MHz) |
Imp. ratio pri : sec |
DCR max (Ohms) |
IDC (mA) |
Isolation (Vrms) |
Insertion loss (dB) |
Bandwidth (MHz) |
Color dot |
| 1812WBT-1L_ | 14 | 10 | 1 : 1 | 4.8 | 200 | 50 | <1 | 0.340–22 | Yellow |
| 1812WBT-2L_ | 5.3 | 10 | 1 : 1 | 1.8 | 400 | 50 | <1 | 0.800–60 | Green |
| 1812WBT-3L_ | 1.25 | 50 | 1 : 1 | 0.7 | 500 | 50 | <1 | 4–200 | White |
| 1812WBT-4L_ | 0.220 | 50 | 1 : 1 | 0.3 | 700 | 50 | <1 | 11–480 | Orange |
| 1812WBT-5L_ | 0.090 | 50 | 1 : 1 | 0.15 | 700 | 50 | <1.5 | 48–645 | Red |
1812WBT-1L_ Gate Drive Transformer Surface Mount Wideband RF Transformers
Shape and Dimensions:

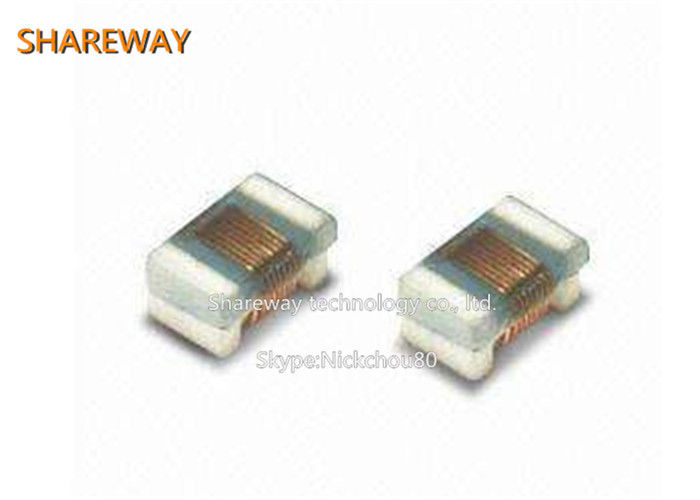

Product picture:
1812WBT-1L_ Gate Drive Transformer Surface Mount Wideband RF Transformers
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
