1812WBT-2L_ Gate Drive Transformer for Satellite STB Subscriber applications

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

1812WBT-2L_ Gate Drive Transformer for Satellite STB Subscriber applications

1812WBT-2L_  Gate Drive Transformer for Satellite STB Subscriber applications
1812WBT-2L_  Gate Drive Transformer for Satellite STB Subscriber applications

Large Image :  1812WBT-2L_ Gate Drive Transformer for Satellite STB Subscriber applications

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 1812WBT-2L_

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 2200/reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Detailed Product Description
Product Name: 1812WBT-2L_ Gate Drive Transformer For Satellite STB Subscriber Applications Application: Ethernet Interface
Type: Gate Drive Transformer Core: Ferrite Body
Solation: 50V Material: Ferrite

1812WBT-2L_ Gate Drive Transformer for Satellite STB Subscriber applications


Feature:

  • Provides wide band pass performance in a small SMT package.
  • 1812 size ferrite body with a ceramic base.
  • 50 V isolation, 1/4 Watt RF input power

Core material Ferrite
Terminations RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight 131 – 152 mg
Ambient temperature –40°C to +85°C with Irms current
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)



We produce:

Surface Mount RF Transformers,wideband tansformer,RF Balun Transformers,Balun Transformers,RF Transformers,SMD-Transformer,RF Transmission Line Transformer,RF Couple Transformer,SMT RF Transformers,Flux Coupled Step-up Transformer,Step down Flux Coupled Transformer,Flux Coupled Transformer,1:1 Flux Coupled Balun Transformer ,Transmission line Step-up Transformer ,Symmetrical tansformer,Inpedance tansformer





Part

number

Inductance

(μH)

Test frequency

(MHz)

Imp. ratio

pri : sec

DCR max

(Ohms)

IDC

(mA)

Isolation

(Vrms)

Insertion

loss (dB)

Bandwidth

(MHz)

Color

dot

1812WBT-1L_ 14 10 1 : 1 4.8 200 50 <1 0.340–22 Yellow
1812WBT-2L_ 5.3 10 1 : 1 1.8 400 50 <1 0.800–60 Green
1812WBT-3L_ 1.25 50 1 : 1 0.7 500 50 <1 4–200 White
1812WBT-4L_ 0.220 50 1 : 1 0.3 700 50 <1 11–480 Orange
1812WBT-5L_ 0.090 50 1 : 1 0.15 700 50 <1.5 48–645 Red





1812WBT-2L_ Gate Drive Transformer for Satellite STB Subscriber applications


Shape and Dimensions:

1812WBT-2L_  Gate Drive Transformer for Satellite STB Subscriber applications 0





Product picture:

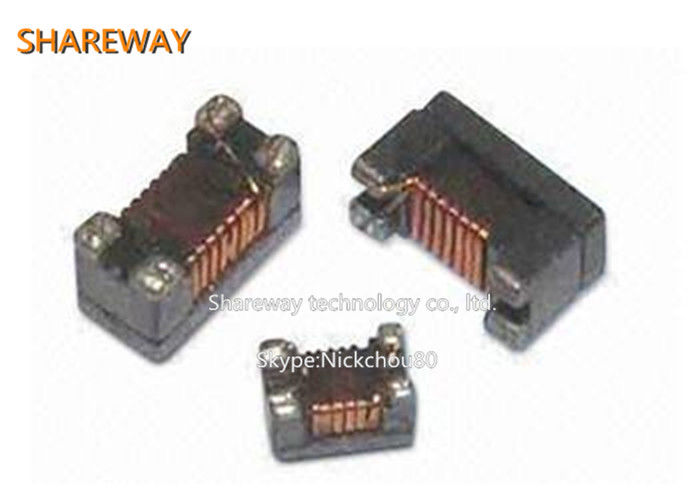

1812WBT-2L_  Gate Drive Transformer for Satellite STB Subscriber applications 1
