Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
News
SHAREWAY TECHNOLOGY CO., LTD.
Home ProductsSMD Power Inductor

High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors

High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors
High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors

Large Image :  High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MSD1278-472ML_

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Detailed Product Description

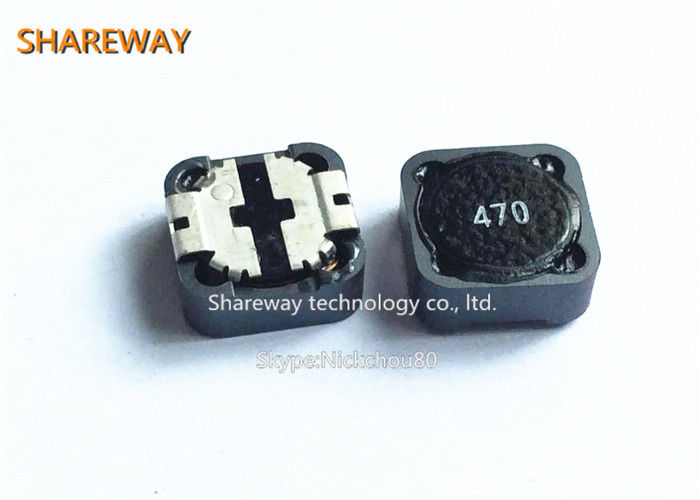

Product Name: High Inductance And High Efficiency MSD1278-472ML_ Shielded Coupled Inductors Type: Shielded Coupled Inductors
Weight: 3.7 – 4.4 G Shield: Shielded
Size: 12.3*12.3*8.5mm Sample: Free Samples
High Light:

wire wound chip inductors

,

high current power inductors

High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors


Description:

• Tight coupling (k ≥ 0.98) and 500 V isolation
• High inductance and high efficiency
• Excellent current handling
• Ideal for use in a variety of circuits including flyback, multi-output
buck, SEPIC and Zeta.
• Can also be used as two single inductors connected in series
or parallel or as a common mode choke.





Part

number

Inductance

(μH)

DCR max

(Ohms)

SRF typ

(MHz)

Coupling

coefficient

typ

Leakage

inductance

typ (μH)

Isat

(A)

Irms (A)

both

windings

one

windings

MSD1278-472ML_ 4.7 ±20% 0.038 32.0 0.98 0.22 14.9 3.16 4.47
MSD1278-562ML_ 5.6 ±20% 0.046 25.0 0.98 0.23 13.4 2.87 4.06
MSD1278-682ML_ 6.8 ±20% 0.048 24.0 0.98 0.22 13.1 2.81 3.98
MSD1278-822ML_ 8.2 ±20% 0.050 18.0 0.98 0.34 10.8 2.76 3.90
MSD1278-103ML_ 10 ±20% 0.058 16.5 0.98 0.34 10.5 2.56 3.62
MSD1278-123ML_ 12 ±20% 0.062 14.5 0.98 0.36 9.6 2.48 3.50
MSD1278-153ML_ 18 ±20% 0.072 11.8 0.99 0.41 9.1 2.30 3.25
MSD1278-183ML_ 18 ±20% 0.080 10.5 0.99 0.37 8.0 2.18 3.08
MSD1278-223ML_ 22 ±20% 0.096 9.0 0.99 0.41 6.8 1.99 2.81
MSD1278-273ML_ 27 ±20% 0.120 8.4 0.99 0.43 6.5 1.78 2.52
MSD1278-333ML_ 33 ±20% 0.150 7.6 0.99 0.56 5.6 1.59 2.25
MSD1278-393ML_ 39 ±20% 0.160 6.5 0.99 0.64 5.5 1.54 2.18
MSD1278-473ML_ 47 ±20% 0.180 6.0 0.99 0.70 5.2 1.45 2.05
MSD1278-563ML_ 56 ±20% 0.190 5.6 0.99 0.76 4.5 1.41 2.00
MSD1278-683ML_ 68 ±20% 0.210 5.0 0.99 0.88 4.1 1.35 1.90
MSD1278-823ML_ 82 ±20% 0.280 4.1 0.99 0.85 3.8 1.16 1.65
MSD1278-104ML_ 100 ±20% 0.300 3.6 >0.99 0.90 3.4 1.13 1.59
MSD1278-124KL_ 120 ±10% 0.410 3.2 0.99 1.31 3.2 0.96 1.36
MSD1278-154KL_ 150 ±10% 0.460 3.0 >0.99 1.46 2.8 0.91 1.29
MSD1278-184KL_ 180 ±10% 0.510 2.7 >0.99 0.93 2.5 0.86 1.22
MSD1278-224KL_ 220 ±10% 0.690 2.5 >0.99 1.54 2.3 0.74 1.05
MSD1278-274KL_ 270 ±10% 0.900 2.1 >0.99 1.17 2.1 0.65 0.92
MSD1278-334KL_ 330 ±10% 1.02 2.0 0.99 4.14 1.9 0.61 0.86
MSD1278-394KL_ 390 ±10% 1.12 1.8 >0.99 1.64 1.7 0.58 0.82
MSD1278-474KL_ 470 ±10% 1.43 1.6 >0.99 0.25 1.6 0.50 0.70
MSD1278-564KL_ 560 ±10% 1.69 1.5 >0.99 2.68 1.5 0.47 0.67
MSD1278-684KL_ 680 ±10% 2.29 1.4 >0.99 2.11 1.3 0.41 0.58
MSD1278-824KL_ 820 ±10% 2.55 1.3 >0.99 2.39 1.2 0.39 0.55
MSD1278-105KL_ 1000 ±10% 2.83 1.1 >0.99 4.28 1.1 0.37 0.52





High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors


Shape and Dimensions:

High inductance and high efficiency MSD1278-472ML_ Shielded Coupled Inductors 0

Contact Details
SHAREWAY TECHNOLOGY CO., LTD.

Contact Person: Jessie Yin

Tel: +8613823520427

Send your inquiry directly to us (0 / 3000)
