Product Name: |
MSS1048-801NL_ Low DCR And Excellent Current Handling SMD Power Inductor |
Size: |
10.2*10.0*4.8mm |
Weight: |
1.7 – 1.9 G |
Terminations: |
Matte Tin Over Nickel Over Copper |
Type: |
Shielded Power Inductor |
Color: |
Black |
Product Name: |
MSS1048-801NL_ Low DCR And Excellent Current Handling SMD Power Inductor |
Size: |
10.2*10.0*4.8mm |
Weight: |
1.7 – 1.9 G |
Terminations: |
Matte Tin Over Nickel Over Copper |
Type: |
Shielded Power Inductor |
Color: |
Black |

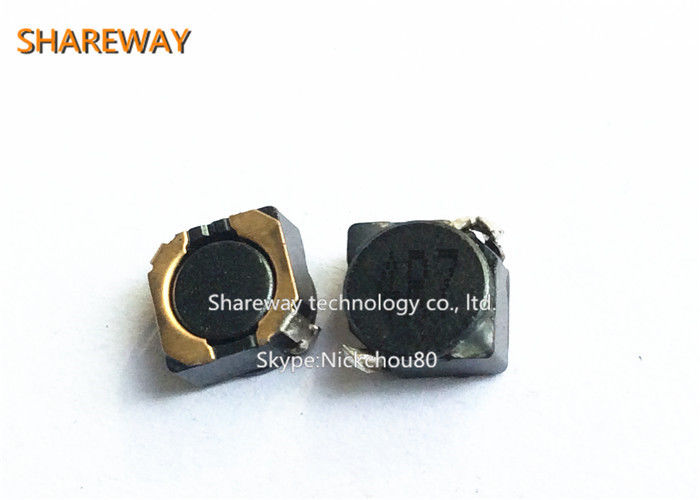

MSS1048-801NL_ low DCR and excellent current handling SMD Power Inductor
Description:
• 10 × 10.2 mm footprint; 4.8 mm high shielded inductors
• Very low DCR and excellent current handling
Core material Ferrite
Terminations RoHS compliant matte tin over nickel over copper.
Other terminations available at additional cost.
Weight: 1.7 – 1.9 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 200/7″ reel; 800/13″ reel; Plastic tape: 24 mm wide,
0.35 mm thick, 16 mm pocket spacing, 5.1 mm pocket depth
| Part number |
Inductance (μH) |
DCR max |
SRF typ (MHz) |
Isat (A) | Irms (A) | |||
|
10% drop |
20% drop |
30% drop |
20°C rise |
40°C rise |
||||
| MSS1048-801NL_ | 0.8 ±30% | 4.3 | 180 | 9.60 | 12.0 | 14.1 | 8.19 | 12.0 |
| MSS1048-152NL_ | 1.5 ±30% | 5.1 | 90 | 5.44 | 7.80 | 10.5 | 7.41 | 10.8 |
| MSS1048-222NL_ | 2.2 ±30% | 7.2 | 70 | 4.92 | 6.62 | 8.40 | 6.63 | 9.78 |
| MSS1048-332NL_ | 3.3 ±30% | 10.0 | 50 | 4.62 | 6.32 | 7.38 | 5.04 | 7.22 |
| MSS1048-472NL_ | 4.7 ±30% | 11.5 | 38 | 4.36 | 5.62 | 6.46 | 4.90 | 6.90 |
| MSS1048-682NL_ | 6.8 ±30% | 16.3 | 35 | 3.60 | 5.00 | 5.94 | 4.52 | 6.01 |
| MSS1048-822NL_ | 8.2 ±30% | 20.0 | 28 | 3.14 | 4.14 | 4.84 | 4.38 | 5.71 |
| MSS1048-103ML_ | 10 ±20% | 23.0 | 24 | 3.08 | 3.84 | 4.32 | 3.99 | 4.79 |
| MSS1048-153ML_ | 15 ±20% | 36.0 | 20 | 2.46 | 3.06 | 3.44 | 3.51 | 4.26 |
| MSS1048-223ML_ | 22 ±20% | 50.0 | 12 | 2.36 | 2.90 | 3.28 | 2.86 | 3.58 |
| MSS1048-333ML_ | 33 ±20% | 68.0 | 11 | 1.66 | 2.14 | 2.42 | 2.12 | 2.80 |
| MSS1048-473ML_ | 47 ±20% | 120 | 10 | 1.44 | 1.86 | 2.20 | 1.83 | 2.42 |
| MSS1048-563ML_ | 56 ±20% | 126 | 10 | 1.36 | 1.70 | 1.90 | 1.71 | 2.28 |
| MSS1048-683ML_ | 68 ±20% | 176 | 7.0 | 1.28 | 1.60 | 1.70 | 1.39 | 1.88 |
| MSS1048-823ML_ | 82 ±20% | 196 | 6.0 | 1.08 | 1.44 | 1.64 | 1.23 | 1.67 |
| MSS1048-104ML_ | 100 ±20% | 224 | 6.0 | 0.99 | 1.20 | 1.36 | 1.09 | 1.48 |
| MSS1048-154KL_ | 150 ±10% | 330 | 5.0 | 0.79 | 1.02 | 1.16 | 0.97 | 1.33 |
| MSS1048-154KL_ | 180 ±10% | 360 | 4.5 | 0.75 | 0.92 | 1.02 | 0.89 | 1.24 |
| MSS1048-224KL_ | 220 ±10% | 394 | 4.5 | 0.67 | 0.84 | 0.95 | 0.85 | 1.18 |
| MSS1048-334KL_ | 330 ±10% | 748 | 3.0 | 0.57 | 0.69 | 0.76 | 0.57 | 0.82 |
| MSS1048-474KL_ | 470 ±10% | 886 | 2.7 | 0.43 | 0.52 | 0.62 | 0.50 | 0.72 |
