Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MSS1038T-821NL_
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 250pcs/reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
Excellent Current Handling High Temp Power Inductors MSS1038T-821NL_ |
Type: |
High Temp Power Inductors |
Feature: |
Excellent Current Handling |
Application: |
High Temperature Applications |
Size: |
10.0*10.0*3.8mm |
Weight: |
1.5 G |
Product Name: |
Excellent Current Handling High Temp Power Inductors MSS1038T-821NL_ |
Type: |
High Temp Power Inductors |
Feature: |
Excellent Current Handling |
Application: |
High Temperature Applications |
Size: |
10.0*10.0*3.8mm |
Weight: |
1.5 G |

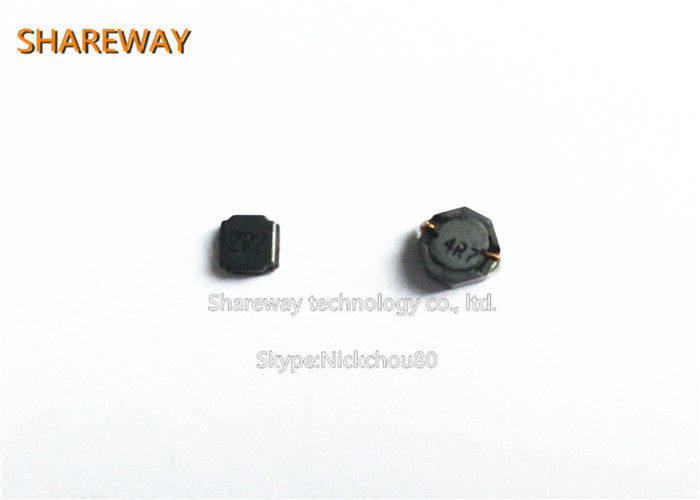

Excellent current handling High Temp Power Inductors MSS1038T-821NL_
Description:
• Designed for high temperature applications; ambient temperature
up to 165°C.
• AEC-Q200 qualified
• Very low DCR and excellent current handling
Core material Ferrite
Terminations RoHS compliant matte tin over nickel over copper.
Other terminations available at additional cost.
Weight: 1.5 g
Ambient temperature –40°C to +125°C with (40°C rise) Irms current.
Maximum part temperature +165°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
| Part number |
Inductance (μH) |
DCR max |
SRF typ (MHz) |
Isat (A) | Irms (A) | |||
|
10% drop |
20% drop |
30% drop |
20°C rise |
40°C rise |
||||
| MSS1038T-821NL_ | 0.82 ±30% | 6.0 | 138 | 9.00 | 11.16 | 12.10 | 7.30 | 10.0 |
| MSS1038T-152NL_ | 1.5 ±30% | 8.1 | 81 | 7.40 | 9.48 | 11.06 | 5.60 | 7.85 |
| MSS1038T-252NL_ | 2.5 ±30% | 10 | 61 | 5.70 | 7.62 | 9.26 | 4.65 | 6.65 |
| MSS1038T-382NL_ | 3.8 ±30% | 13 | 45 | 4.94 | 6.50 | 7.64 | 4.25 | 6.05 |
| MSS1038T-522NL_ | 5.2 ±30% | 22 | 37 | 3.96 | 5.28 | 6.14 | 3.60 | 5.10 |
| MSS1038T-702NL_ | 7.0 ±30% | 27 | 33 | 3.62 | 4.74 | 5.60 | 3.10 | 4.35 |
| MSS1038T-103NL_ | 10 ±30% | 35 | 29 | 3.04 | 4.74 | 4.52 | 2.90 | 4.05 |
| MSS1038T-123ML_ | 12 ±20% | 41 | 25 | 2.72 | 3.90 | 4.04 | 2.85 | 4.00 |
| MSS1038T-153ML_ | 15 ±20% | 50 | 21 | 2.84 | 3.48 | 3.86 | 2.70 | 3.80 |
| MSS1038T-183ML_ | 18 ±20% | 65 | 18 | 2.44 | 3.44 | 3.52 | 2.25 | 3.35 |
| MSS1038T-223ML_ | 22 ±20% | 73 | 15 | 2.34 | 3.10 | 3.30 | 1.90 | 2.85 |
| MSS1038T-273ML_ | 27 ±20% | 89 | 15 | 1.98 | 2.94 | 2.84 | 1.65 | 2.35 |
| MSS1038T-333ML_ | 33 ±20% | 93 | 13 | 1.84 | 2.48 | 2.62 | 1.60 | 2.30 |
| MSS1038T-393ML_ | 39 ±20% | 112 | 12 | 1.60 | 2.34 | 2.34 | 1.55 | 2.25 |
| MSS1038T-473ML_ | 47 ±20% | 128 | 11 | 1.60 | 2.04 | 2.22 | 1.45 | 2.20 |
| MSS1038T-563ML_ | 56 ±20% | 180 | 11 | 1.48 | 1.84 | 2.04 | 1.40 | 1.85 |
| MSS1038T-683ML_ | 68 ±20% | 213 | 10 | 1.32 | 1.62 | 1.82 | 1.15 | 1.75 |
| MSS1038T-823ML_ | 82 ±20% | 261 | 8 | 1.12 | 1.42 | 1.60 | 1.09 | 1.50 |
| MSS1038T-104ML_ | 100 ±20% | 304 | 6 | 1.02 | 1.30 | 1.46 | 1.05 | 1.45 |
| MSS1038T-124KL_ | 120 ±10% | 380 | 6 | 0.95 | 1.18 | 1.34 | 0.85 | 1.25 |
| MSS1038T-154KL_ | 150 ±10% | 506 | 6 | 0.89 | 1.10 | 1.22 | 0.80 | 1.20 |
| MSS1038T-184KL_ | 180 ±10% | 582 | 5 | 0.89 | 1.02 | 1.16 | 0.71 | 0.98 |
| MSS1038T-224KL_ | 220 ±10% | 756 | 5 | 0.72 | 0.88 | 0.99 | 0.70 | 0.97 |
| MSS1038T-274KL_ | 270 ±10% | 926 | 4 | 0.66 | 0.81 | 0.91 | 0.65 | 0.86 |
| MSS1038T-334KL_ | 330 ±10% | 1090 | 4 | 0.73 | 0.73 | 0.82 | 0.50 | 0.69 |
| MSS1038T-394KL_ | 390 ±10% | 1141 | 4 | 0.51 | 0.65 | 0.74 | 0.49 | 0.65 |
| MSS1038T-474KL_ | 470 ±10% | 1243 | 3 | 0.50 | 0.62 | 0.70 | 0.45 | 0.63 |
| MSS1038T-564KL_ | 560 ±10% | 1696 | 3 | 0.43 | 0.53 | 0.56 | 0.43 | 0.59 |
| MSS1038T-684KL_ | 680 ±10% | 1926 | 3 | 0.38 | 0.48 | 0.52 | 0.36 | 0.50 |
| MSS1038T-824KL_ | 820 ±10% | 2596 | 3 | 0.37 | 0.46 | 0.49 | 0.34 | 0.47 |
| MSS1038T-105KL_ | 1000 ±10% | 2853 | 3 | 0.35 | 0.43 | 0.46 | 0.33 | 0.45 |
Excellent current handling High Temp Power Inductors MSS1038T-821NL_
Shape and Dimensions:
