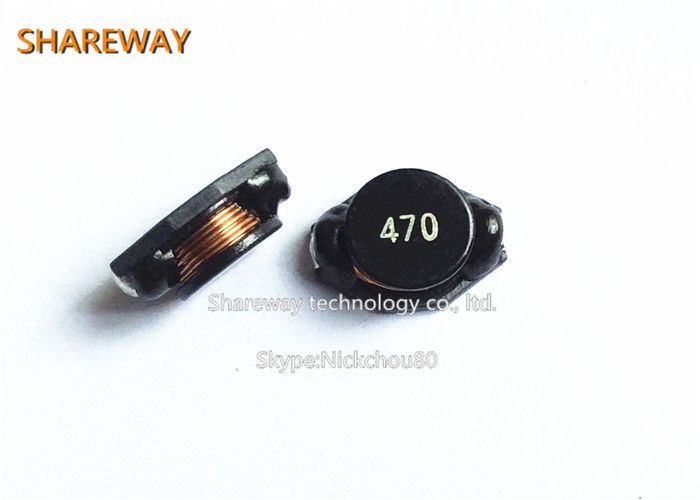

DS1608B-104ML_ Backlight Inductors for demanding backlighting applications

DS1608B-104ML_ Backlight Inductors for demanding backlighting applications
DS1608B-104ML_ Backlight Inductors for demanding backlighting applications

Large Image :  DS1608B-104ML_ Backlight Inductors for demanding backlighting applications

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: DS1608B-104ML_

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 750pcs/reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Detailed Product Description
Product Name: DS1608B-104ML_ Backlight Inductors For Demanding Backlighting Applications Application: Demanding Backlighting Applications
Type: Backlight Inductors Weight: 0.14 – 0.16 G
Feature: Low DCR Size: 6.6*4.45*2.92mm
High Light:

wire wound chip inductors

,

dc dc converter inductor

DS1608B-104ML_ Backlight Inductors for demanding backlighting applications


Description:

• Specially designed for demanding backlighting applications
• High breakdown voltage and very low DCR



Core material Ferrite
Terminations RoHS compliant electroplated gold (<50 μin) over nickel
over moly-manganese. Other terminations available at additional cost.
Weight 0.14 – 0.16 g
Ambient temperature –40°C to +85°C with Irms current, +85°C to
+115°C with derated current
Storage temperature Component: –40°C to +115°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.28 mm thick, 4 mm pocket spacing, 3 mm pocket depth





Part number

L

±20%

(mH)

DCR

max

(Ohms)

Insulation

core-winding

(MOhms)

SRF

typ

(MHz)

Irms

(mA)

DS1608B-104ML_ 0.10 0.95 >10 12 220
DS1608B-154ML_ 0.15 1.4 >10 10 200
DS1608B-224ML_ 0.22 1.7 >10 8 180
DS1608B-334ML_ 0.33 2.2 >10 6 160
DS1608B-474ML_ 0.47 3.8 >10 5 140
DS1608B-684ML_ 0.68 4.9 >10 4 120
DS1608B-105ML_ 1.0 9 >10 2 100
DS1608B-155ML_ 1.5 11 >10 1 80
DS1608B-225ML_ 2.2 19 >10 1 50
DS1608B-335ML_ 3.3 24 >10 1 40
DS1608B-475ML_ 4.7 30 >10 1 30
DS1608B-685ML_ 6.8 56 >10 0.9 20
DS1608B-106ML_ 10.0 74 >10 0.8 10





DS1608B-104ML_ Backlight Inductors for demanding backlighting applications


Shape and Dimensions:

DS1608B-104ML_ Backlight Inductors for demanding backlighting applications 0
