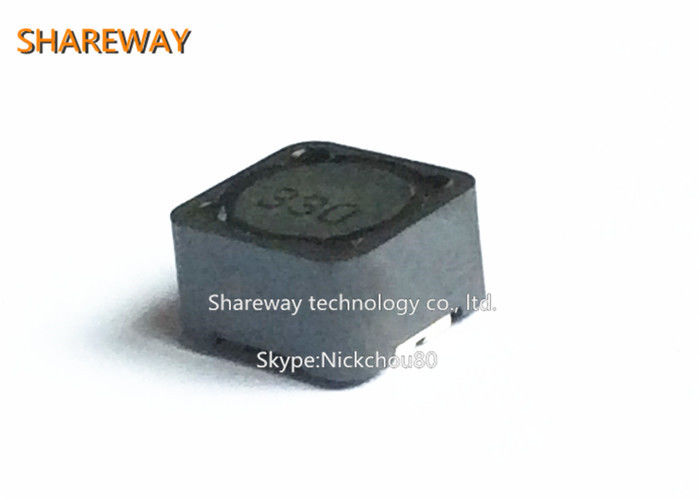

Product Name: 4.6 High MSD7342-252ML_ 4.6 High MSD7342-252ML_ Shielded Coupled Inductors Common Mode Choke Common Mode Choke Type: Shielded Coupled Inductors
Application: Audio Devices Size: 7.5*7.5*4.6mm
Inductance: 2.5 To 1000 UH Weight: 0.76 – 0.87g
High Light:

wire wound chip inductors

,

high current power inductors

4.6 high MSD7342-252ML_ Shielded Coupled Inductors common mode choke


Description:
• Tight coupling (k ≥ 0.97) and 200 V isolation make the MSD7342
series of coupled inductors ideal for use in a variety of circuits
including flyback, multi-output buck and SEPIC.
• They provide high inductance, high efficiency and excellent
current handling in a rugged, low cost part.
• Can also be used as two single inductors connected in series
or parallel, as a common mode choke or as a 1 : 1 transformer.



Part number

Inductance
±20% (μH)

DCR max
(Ohms)

SRF typ
(MHz)

Coupling
coefficient
typ

Leakage
L typ
(μH)

Isat (A) Irms (A)

10%
drop

20%
drop

30%
drop

both
winding

one
winding8

MSD7342-252ML_ 2.5 0.033 55 0.97 0.14 6.0 6.2 6.3 2.17 3.06
MSD7342-332ML_ 3.3 0.037 43 0.99 0.09 5.2 5.3 5.4 2.05 2.89
MSD7342-472ML_ 4.7 0.051 35 0.99 0.11 4.1 4.3 4.6 1.74 2.46
MSD7342-562ML_ 5.6 0.063 32 0.99 0.09 3.9 4.1 4.2 1.57 2.22
MSD7342-682ML_ 6.8 0.070 30 0.99 0.14 3.7 3.8 3.9 1.49 2.10
MSD7342-822ML_ 8.2 0.075 27 0.98 0.25 3.3 3.4 3.5 1.44 2.03
MSD7342-103ML_ 10 0.100 22 0.98 0.30 2.8 2.9 3.0 1.24 1.76
MSD7342-123ML_ 12 0.120 20 0.98 0.36 2.5 2.6 2.7 1.14 1.61
MSD7342-153ML_ 15 0.130 18 0.98 0.49 2.2 2.3 2.4 1.09 1.54
MSD7342-183ML_ 18 0.170 15 >0.99 0.16 2.0 2.2 2.3 0.95 1.35
MSD7342-223ML_ 22 0.220 13.5 >0.99 0.20 1.9 2.0 2.1 0.84 1.19
MSD7342-273ML_ 27 0.250 12.0 >0.99 0.20 1.7 1.8 1.9 0.79 1.11
MSD7342-333ML_ 33 0.270 11.0 >0.99 0.15 1.5 1.6 1.7 0.76 1.07
MSD7342-393ML_ 39 0.380 10.0 0.99 0.70 1.3 1.4 1.5 0.64 0.90
MSD7342-473ML_ 47 0.420 9.5 >0.99 0.30 1.2 1.3 1.4 0.61 0.86
MSD7342-563ML_ 56 0.460 8.7 >0.99 0.51 1.1 1.2 1.3 0.58 0.82
MSD7342-683ML_ 68 0.600 7.3 >0.99 0.51 1.0 1.1 1.2 0.51 0.72
MSD7342-823ML_ 82 0.680 6.2 0.99 1.17 0.90 1.00 1.1 0.48 0.67
MSD7342-104ML_ 100 0.770 5.5 >0.99 0.96 0.80 0.92 0.98 0.45 0.63
MSD7342-124ML_ 120 1.03 4.5 >0.99 0.61 0.70 0.80 0.90 0.39 0.55
MSD7342-154ML_ 150 1.35 4.0 >0.99 0.54 0.65 0.76 0.80 0.34 0.48
MSD7342-184ML_ 180 1.52 3.8 >0.99 0.75 0.62 0.66 0.73 0.32 0.45
MSD7342-224ML_ 220 1.72 3.5 >0.99 1.43 0.59 0.62 0.66 0.30 0.42
MSD7342-274ML_ 270 2.41 3.3 >0.99 1.56 0.55 0.57 0.60 0.25 0.36
MSD7342-334ML_ 330 2.70 3.0 >0.99 1.65 0.49 0.52 0.54 0.24 0.34
MSD7342-394ML_ 390 3.05 2.8 0.99 4.73 0.45 0.47 0.50 0.23 0.32
MSD7342-474ML_ 470 4.00 2.6 0.99 5.50 0.41 0.43 0.46 0.20 0.28
MSD7342-564ML_ 560 4.43 2.5 >0.99 4.85 0.38 0.40 0.42 0.19 0.26
MSD7342-684ML_ 680 5.00 2.3 0.99 7.59 0.36 0.37 0.38 0.18 0.25
MSD7342-824ML_ 820 6.80 2.2 >0.99 8.01 0.30 0.32 0.35 0.15 0.21
MSD7342-105ML_ 1000 7.80 2.0 >0.99 8.69 0.27 0.29 0.31 0.14 0.20
