Home > products > SMD Power Inductor > SER3018H-332KE Shielded Power Inductors current handling up to 93.6 Amps

SER3018H-332KE Shielded Power Inductors current handling up to 93.6 Amps

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: SER3018H-332KE

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 25pcs/tray

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

wire wound chip inductors

,

dc dc converter inductor

Product Name:
SER3018H-332KE Shielded Power Inductors Current Handling Up To 93.6 Amps
Type:
Flat Wire Windings Inductor
Applicaton:
Excellent Board Adhesion
Weight:
36.2 G
Size:
19.7*17.78*27.94
Inductance:
3.3 -33 UH
Product Name:
SER3018H-332KE Shielded Power Inductors Current Handling Up To 93.6 Amps
Type:
Flat Wire Windings Inductor
Applicaton:
Excellent Board Adhesion
Weight:
36.2 G
Size:
19.7*17.78*27.94
Inductance:
3.3 -33 UH

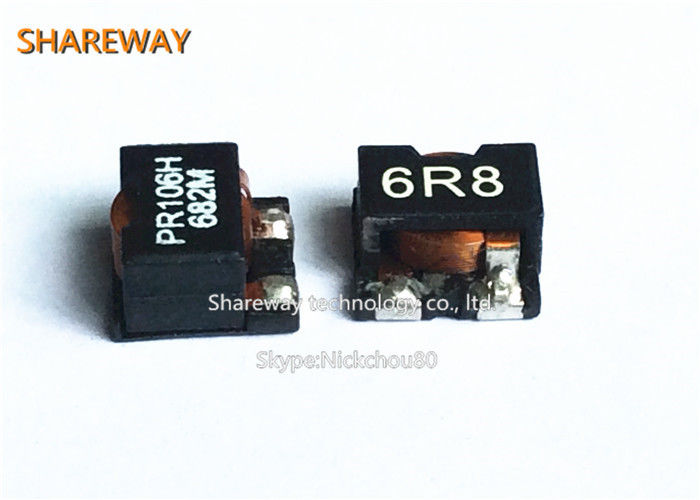

SER3018H-332KE Shielded Power Inductors current handling up to 93.6 Amps

SER3018H-332KE Shielded Power Inductors current handling up to 93.6 Amps


Description:

• Same electrical specifications and land pattern as the SER2918H
• Mounting plate with three pads for excellent board adhesion
• Extremely low DCR; current handling up to 93.6 Amps



Core material Ferrite

Environmental RoHS compliant, halogen free
Terminations RoHS compliant matte tin over nickel over phos
bronze. Other terminations available at additional cost.
Weight 36.2 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 25 pieces per tray





Part number

Inductance

±10% (μH)

DCR (mOhms)

SRF typ

(MHz)

Isat (A) Irms (A)
nom max 10% drop 20% drop 30% drop 20°C rise 40°C rise
SER3018H-332KE 3.3 2.56 2.82 40 91.0 92.5 93.6 20 28
SER3018H-472KE 4.7 2.56 2.82 30 59.0 61.2 62.4 20 28
SER3018H-682KE 6.8 2.56 2.82 25 42.0 45.0 45.9 20 28
SER3018H-103KE 10 2.56 2.82 20 28.0 31.2 32.1 20 28
SER3018H-153KE 15 2.56 2.82 16 18.0 21.2 21.9 20 28
SER3018H-223KE 22 2.56 2.82 15 12.0 14.0 15.0 20 28
SER3018H-333KE 33 2.56 2.82 10 7.0 8.7 9.6 20 28





SER3018H-332KE Shielded Power Inductors current handling up to 93.6 Amps


Shape and Dimensions:

SER3018H-332KE Shielded Power Inductors current handling up to 93.6 Amps 0
