Product Name: |
SER1590-301ML_ Shielded Power Inductors With Heavy Flat Wire Windings |
Appication: |
High Current, Low Voltage Power Supply Applications |
Current Ratings: |
50 Amps |
Winding To Core Isolation: |
300 Vrms |
Inductance: |
0.30 - 1.5uH |
Weight: |
4.14 – 5.2 G |
Product Name: |
SER1590-301ML_ Shielded Power Inductors With Heavy Flat Wire Windings |
Appication: |
High Current, Low Voltage Power Supply Applications |
Current Ratings: |
50 Amps |
Winding To Core Isolation: |
300 Vrms |
Inductance: |
0.30 - 1.5uH |
Weight: |
4.14 – 5.2 G |

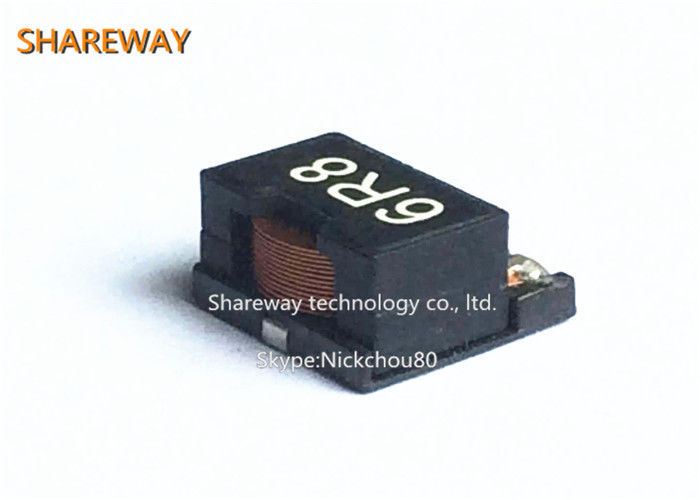

SER1590-301ML_ Shielded Power Inductors with heavy flat wire windings
Description:
Designed for high current, low voltage power supply
applications, the SER1590 Series offers unmatched
electrical performance in an extremely robust package.
With their heavy flat wire windings, these inductors have
exceptionally low DC resistance and offer saturation current
ratings up to 50 Amps. Winding to core isolation
is 300 Vrms.
Part number |
Inductance ±20% (μH) |
DCR (mOhms) |
SRF typ (MHz) |
Isat (A) |
Irms (A) |
|||
typ | max | 10% drop | 20% drop | 30% drop | ||||
SER1590-301ML_ | 0.30 | 0.66 | 0.72 | 260 | 53 | 56 | 57 | 32 |
SER1590-501ML_ | 0.50 | 0.87 | 0.94 | 202 | 39 | 42 | 44 | 27 |
SER1590-601ML_ | 0.60 | 0.87 | 0.94 | 182 | 33 | 35 | 36 | 27 |
SER1590-681ML_ | 0.68 | 0.87 | 0.94 | 160 | 30 | 32 | 33 | 27 |
SER1590-801ML_ | 0.80 | 0.87 | 0.94 | 123 | 25 | 26 | 27 | 27 |
SER1590-901ML_ | 0.90 | 1.08 | 1.15 | 160 | 27 | 28 | 29 | 22 |
SER1590-102ML_ | 1.0 | 0.87 | 0.94 | 115 | 20 | 22 | 23 | 27 |
SER1590-122ML_ | 1.2 | 1.08 | 1.15 | 90 | 20 | 22 | 23 | 22 |
SER1590-152ML_ | 1.5 | 1.08 | 1.15 | 73 | 17 | 18 | 19 | 22 |
SER1590-301ML_ Shielded Power Inductors with heavy flat wire windings
