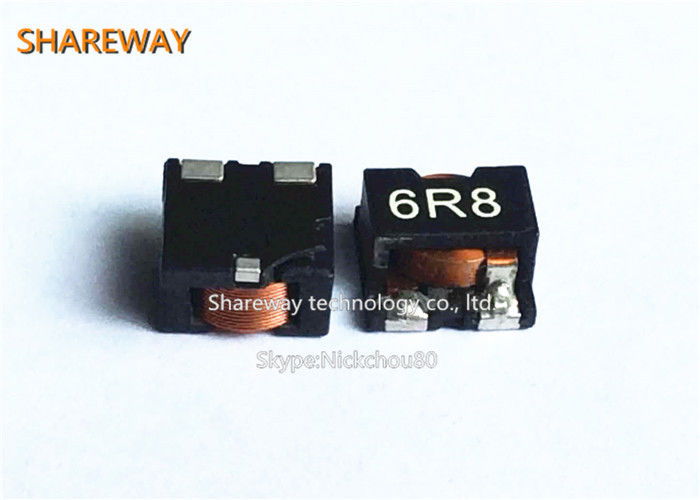

Flat wire windings small footprint SER1412-301ME_ SMD Power Inductor

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

Flat wire windings small footprint SER1412-301ME_ SMD Power Inductor

Flat wire windings small footprint SER1412-301ME_ SMD Power Inductor
Flat wire windings small footprint SER1412-301ME_ SMD Power Inductor

Large Image :  Flat wire windings small footprint SER1412-301ME_ SMD Power Inductor

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: SER1412-301ME_

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 13″ machine-ready reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: Flat Wire Windings Small Footprint SER1412-301ME_ SMD Power Inductor Application: High Current Power Supply Applications
Feature: Flat Wire Windings Ambient Temperature: –40°C To +125°C
Storage Temperature: –40°C To +165°C Tape And Reel Packaging: –40°C To +80°C
High Light:

dc dc converter inductor

,

high current power inductors

Flat wire windings small footprint SER1412-301ME_ SMD Power Inductor


Description:

• Designed for high current power supply applications
• Flat wire windings provide exceptionally low DCR
• Specially formed terminations provide small footprint
• Isat ratings as high as 105.9 A!



Core material Ferrite
Environment RoHS compliant, halogen free
Terminations RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Ambient temperature –40°C to +125°C with (40°C rise) Irms current.
Maximum part temperature +165°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)





High Isat for high peak current applications

Part number

Inductance

±20% (μH)

DCR typ

(mOhms)

DCR max
(mOhms)

SRF typ

(MHz)

Isat (A) Irms (A)

Height max

(inches / mm)

10% drop 20% drop 30% drop 20°C rise 40°C rise
SER1412-301ME_ 0.30 1.30 1.43 154 87.0 92.8 105.9 30 37 0.498 / 12,66
SER1412-501ME_ 0.50 1.30 1.43 122 56.1 59.3 62.5 30 37 0.498 / 12,66
SER1412-681ME_ 0.68 1.30 1.43 100 41.2 43.5 45.8 30 37 0.498 / 12,66
SER1412-102ME_ 1.0 1.30 1.43 78 28.9 31.0 32.2 30 37 0.498 / 12,66
SER1412-152ME_ 1.5 1.30 1.43 62 21.8 23.6 24.6 30 37 0.498 / 12,66
SER1412-202ME_ 2.0 1.30 1.43 50 16.9 18.5 19.4 30 37 0.498 / 12,66
SER1412-362ME_ 3.6 1.30 1.43 35 9.6 11.2 12.1 30 37 0.498 / 12,66





Low DCR for high average current applications

Part number

Inductance

±20% (μH)

DCR typ

(mOhms)

DCR max
(mOhms)

SRF typ

(MHz)

Isat (A) Irms (A)

Height max

(inches / mm)

10% drop 20% drop 30% drop 20°C rise 40°C rise
SER1408-301ME_ 0.30 0.48 0.55 140 43.2 49.6 53.0 38 42 0.325 / 8,26
SER1408-501ME_ 0.50 0.48 0.55 83 25.8 29.6 31.4 38 42 0.325 / 8,26
SER1408-681ME_ 0.68 0.48 0.55 63 18.8 21.6 23.2 38 42 0.325 / 8,26
SER1408-102ME_ 1.0 0.48 0.55 48 12.1 14.2 16.1 38 42 0.325 / 8,26
SER1410-152ME_ 1.5 0.90 0.99 53 16.8 18.9 20.3 33 39 0.416 / 10,56
SER1410-202ME_ 2.0 0.90 0.99 45 12.1 13.9 15.0 33 39 0.416 / 10,56
