Product Name: |
Inductor SER1390-103ML_ With Exceptionally High Current Carrying Capability |
Weight: |
4.0 – 4.8 G |
Size: |
13.5*13.5*9.0mm |
Feature: |
Flat Wire Windings |
Type: |
Flat Wire Windings Inductor |
Sample: |
Free Sample |
Product Name: |
Inductor SER1390-103ML_ With Exceptionally High Current Carrying Capability |
Weight: |
4.0 – 4.8 G |
Size: |
13.5*13.5*9.0mm |
Feature: |
Flat Wire Windings |
Type: |
Flat Wire Windings Inductor |
Sample: |
Free Sample |

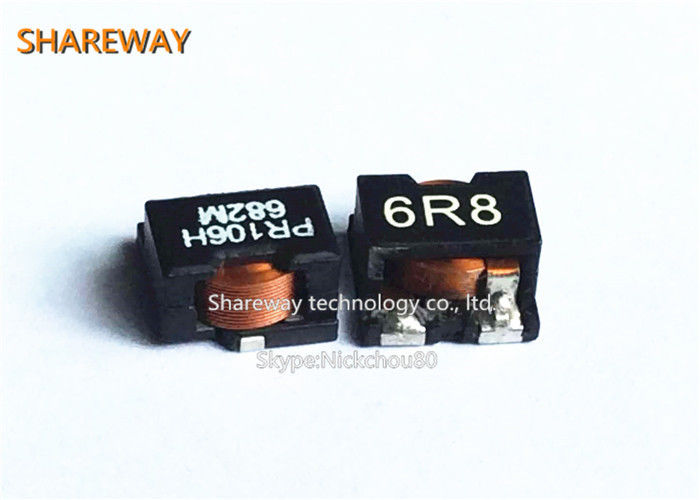

Inductor SER1390-103ML_ with Exceptionally high current carrying capability
Description:
• Exceptionally high current carrying capability
• Low DC resistance
• AEC-200 Grade 3 qualified (–40°C to +85°C ambient
Core material Ferrite
Terminations RoHS compliant matte tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight 4.0 – 4.8 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
| Part number |
Inductance ±20% (μH) |
DCR (mOhms) |
SRF typ (MHz) |
Isat (A) | Irms (A) | ||||
| typ | max | 10% drop | 20% drop | 30% drop | 20°C rise | 40°C rise | |||
| SER1390-103ML_ | 10 | 13.7 | 15.0 | 26.9 | 11.32 | 12.56 | 13.16 | 6.4 | 9.2 |
| SER1390-153ML_ | 15 | 13.7 | 15.0 | 24.3 | 7.20 | 8.04 | 8.60 | 6.4 | 9.2 |
| SER1390-223ML_ | 22 | 21.0 | 23.1 | 20.3 | 6.08 | 6.80 | 7.36 | 5.7 | 7.7 |
| SER1390-333ML_ | 33 | 21.0 | 23.1 | 15.7 | 3.80 | 4.40 | 4.76 | 5.7 | 7.7 |
| SER1390-473ML_ | 47 | 21.0 | 23.1 | 13.2 | 2.60 | 3.00 | 3.20 | 5.7 | 7.7 |
