6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_

Name: 6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_
Brand: SHAREWAY TECHNOLOGY CO., LTD.
SKU: MSS7341-332_L_
Price: 0.30 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: MSS7341-332_L_

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 300PCS/REEL

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                dc dc converter inductor, high current power inductors


Product Name:	6.6 × 6.6 Mm Footprint Shielded Power Inductors MSS7341-332_L_	Footprint:	6.6 × 6.6 Mm
Weight:	0.61 – 0.67 G	Inductance:	3.3uH
Size:	7.37.34.1mm	Type:	Shielded Inductor

Product Name:	6.6 × 6.6 Mm Footprint Shielded Power Inductors MSS7341-332_L_
Footprint:	6.6 × 6.6 Mm
Weight:	0.61 – 0.67 G
Inductance:	3.3uH
Size:	7.37.34.1mm
Type:	Shielded Inductor

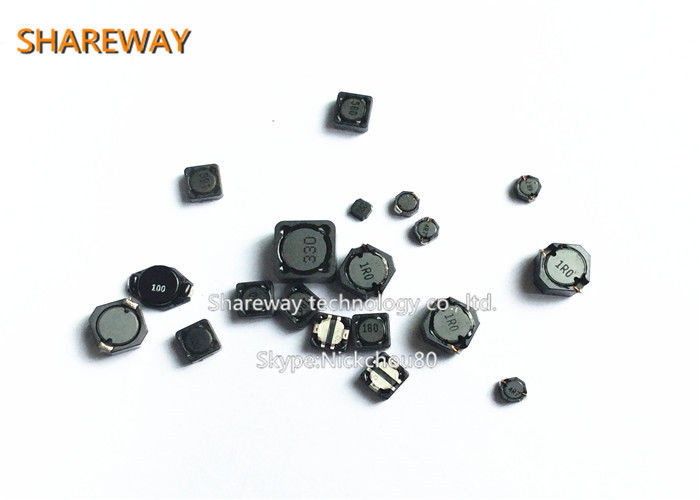

6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_

6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_

Description:

• 6.6 × 6.6 mm footprint; 4.1 mm high shielded inductors
• Low DCR and excellent current handling

Core material Ferrite
Terminations RoHS compliant matte tin over nickel over phos
bronze (current production) or gold over nickel over phos bronze (prior
production). Other terminations available at additional cost.
Weight: 0.61 – 0.67 g
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 300/7 reel; 1200/13″ reel; Plastic tape: 16 mm wide,
0.35 mm thick, 12 mm pocket spacing, 4.5 mm pocket depth

Part number	Inductance (μH)	Percent tolerance	DCR (mOhms)		SRF typ (MHz)	Isat (A)			Irms (A)6
Part number	Inductance (μH)	Percent tolerance	typ	max	SRF typ (MHz)	10% drop	20% drop	30% drop	20°C rise	40°C rise
MSS7341-332_L_	3.3	30,20	0.014	0.018	85	2.74	3.28	3.72	3.95	5.00
MSS7341-502_L_	5.0	30,20	0.018	0.023	49	2.30	2.82	3.16	3.40	4.70
MSS7341-622_L_	6.2	30,20	0.024	0.027	42	2.18	2.66	2.98	3.05	4.30
MSS7341-742_L_	7.4	30,20	0.027	0.031	35	1.92	2.32	2.56	2.80	4.10
MSS7341-872_L_	8.7	30,20	0.029	0.034	33	1.78	2.12	2.36	2.80	3.90
MSS7341-103ML_	10	20	0.032	0.038	32	1.64	1.92	2.10	2.80	3.80
MSS7341-123ML_	12	20	0.040	0.050	27	1.48	1.76	1.92	2.45	3.30
MSS7341-153ML_	15	20	0.047	0.055	26	1.36	1.60	1.78	2.05	3.00
MSS7341-183ML_	18	20	0.065	0.075	25	1.20	1.46	1.62	1.85	2.65
MSS7341-223ML_	22	20	0.074	0.082	22	1.02	1.26	1.42	1.70	2.35
MSS7341-273ML_	27	20	0.091	0.109	19	1.00	1.14	1.22	1.50	2.10
MSS7341-333ML_	33	20	0.104	0.124	17	0.91	1.04	1.16	1.50	1.95
MSS7341-393ML_	39	20	0.115	0.130	15	0.85	1.01	1.12	1.50	1.90
MSS7341-473ML_	47	20	0.127	0.155	14	0.74	0.92	1.00	1.50	1.85
MSS7341-563ML_	56	20	0.174	0.202	11	0.68	0.80	0.87	1.25	1.60
MSS7341-683ML_	68	20	0.236	0.250	9.6	0.62	0.73	0.80	1.00	1.35
MSS7341-823ML_	82	20	0.257	0.290	8.5	0.57	0.66	0.72	1.00	1.25
MSS7341-104ML_	100	20	0.286	0.310	7.2	0.54	0.64	0.71	0.90	1.15
MSS7341-154ML_	150	20	0.438	0.475	6.0	0.45	0.53	0.58	0.86	1.14
MSS7341-224ML_	220	20	0.660	0.710	5.0	0.35	0.41	0.47	0.57	0.78
MSS7341-474ML_	470	20	1.21	1.45	3.0	0.24	0.28	0.32	0.43	0.57
MSS7341-684KL_	680	20	1.85	1.98	2.5	0.22	0.27	0.29	0.42	0.56

6.6 × 6.6 mm footprint Shielded Power Inductors MSS7341-332_L_

Shape and Dimensions:
