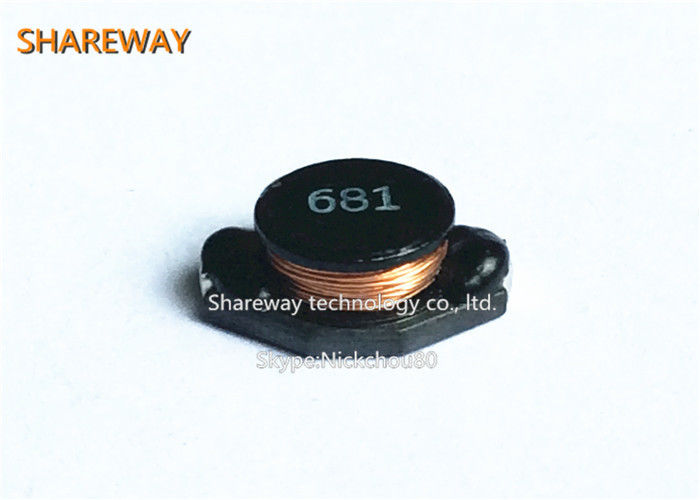

Inductor DO1813H-181ML_ Rugged self-leaded construction for reliable soldering

Name: Inductor DO1813H-181ML_ Rugged self-leaded construction for reliable soldering
Brand: SHAREWAY TECHNOLOGY CO., LTD.
SKU: DO1813H-181ML_
Price: 0.30 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: DO1813H-181ML_

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 1000pcs/reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                wire wound chip inductors, high current power inductors


Product Name:	Inductor DO1813H-181ML_ Rugged Self-leaded Construction For Reliable Soldering	Type:	Inductor
Feature:	Rugged Self-leaded Construction For Reliable Soldering	Terminations:	Tin-silver Over Copper
Weight:	278 – 315 Mg	Size:	8.896.105.0mm

Product Name:	Inductor DO1813H-181ML_ Rugged Self-leaded Construction For Reliable Soldering
Type:	Inductor
Feature:	Rugged Self-leaded Construction For Reliable Soldering
Terminations:	Tin-silver Over Copper
Weight:	278 – 315 Mg
Size:	8.896.105.0mm

Inductor DO1813H-181ML_ Rugged self-leaded construction for reliable soldering

Inductor DO1813H-181ML_ Rugged self-leaded construction for reliable soldering

Description:

• High-current power inductance; up to 14 A saturating current
• Rugged self-leaded construction for reliable soldering

Core material Ferrite
Terminations RoHS compliant tin-silver over copper. Other
terminations available at additional cost.
Weight 278 – 315 mg
Ambient temperature –40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature +125°C (ambient + temp rise). Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 1000 per 13″ reel Plastic tape: 16 mm wide,
0.3 mm thick, 12 mm pocket spacing, 5.4 mm pocket depth

Part number	L ref (μH)	L typ ±20% (μH)	DCR max (Ohms)	SRF typ (MHz)	Isat (A)	Irms (A)
DO1813H-181ML_	0.18	0.18	0.003	800	14.0	10.0
DO1813H-331ML_	0.33	0.33	0.004	600	10.0	7.0
DO1813H-561ML_	0.56	0.56	0.010	200	7.7	6.0
DO1813H-122ML_	1.2	1.15	0.017	140	5.3	4.4
DO1813H-222ML_	2.2	2.06	0.035	100	3.5	3.1
DO1813H-332ML_	3.3	3.20	0.040	80	3.0	2.7
DO1813H-472ML_	4.7	4.70	0.054	50	2.6	2.2
DO1813H-682ML_	6.8	6.80	0.080	45	2.2	1.8
DO1813H-822ML_	8.2	8.20	0.092	42	2.0	1.6
DO1813H-103ML_	10.0	9.55	0.11	40	1.9	1.5
DO1813H-153ML_	15.0	15.3	0.17	30	1.5	1.2
DO1813H-223ML_	22.0	22.6	0.25	25	1.2	1.0
DO1813H-333ML_	33.0	32.5	0.35	20	0.99	0.82
DO1813H-473ML_	47.0	48.1	0.47	15	0.87	0.72
