Product Name: |
High Energy Storage And Low Resistance DO3316P-102ML_ For EL Driver Applications |
Core Material: |
Ferrite |
Weight: |
0.92 – 1.23 G |
Type: |
Power Inductors |
Application: |
EL Driver Applications |
Feature: |
High Energy Storage And Low Resistance |
Product Name: |
High Energy Storage And Low Resistance DO3316P-102ML_ For EL Driver Applications |
Core Material: |
Ferrite |
Weight: |
0.92 – 1.23 G |
Type: |
Power Inductors |
Application: |
EL Driver Applications |
Feature: |
High Energy Storage And Low Resistance |

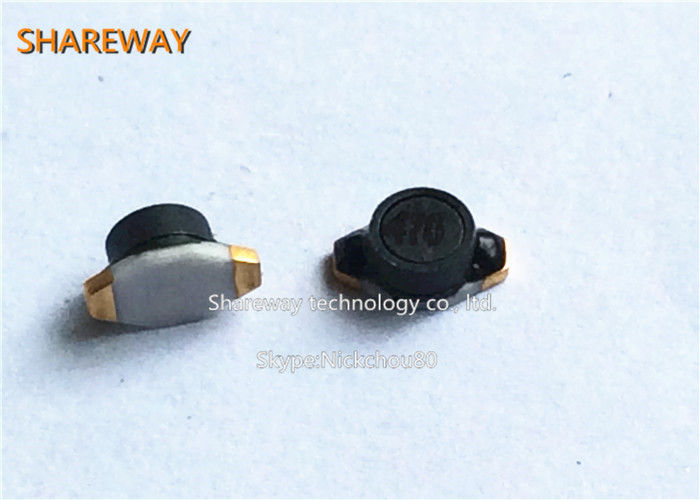

High energy storage and low resistance DO3316P-102ML_ for EL driver applications
Description:
• High energy storage and very low resistance
• High inductance values are perfect for EL driver applications.
Weight 0.92 – 1.23 g
Ambient temperature –40°C to +85°C with Irms current
Maximum part temperature +125°C (ambient + temp rise) Derating.
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging 1000 per 13″ reel Plastic tape: 24 mm wide,
0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth
|
Part number |
L (μH) |
Percent tol |
DCR max (Ohms) |
SRF typ (MHz) |
Isat (A) |
Irms (A) |
| DO3316P-102ML_ | 1.0 | 20 | 0.009 | 100 | 9.0 | 6.8 |
| DO3316P-152ML | 1.5 | 20 | 0.010 | 90 | 8.0 | 6.4 |
| DO3316P-222_L_ | 2.2 | 20,10 | 0.012 | 80 | 7.0 | 6.1 |
| DO3316P-332_L_ | 3.3 | 20,10 | 0.015 | 65 | 6.4 | 5.4 |
| DO3316P-472_L_ | 4.7 | 20,10 | 0.018 | 45 | 5.4 | 4.8 |
| DO3316P-682_L_ | 6.8 | 20,10 | 0.027 | 38 | 4.6 | 4.4 |
| DO3316P-103_L_ | 10 | 20,10 | 0.038 | 30 | 3.8 | 3.9 |
| DO3316P-153_L_ | 15 | 20,10 | 0.046 | 27 | 3.0 | 3.1 |
| DO3316P-223_L_ | 22 | 20,10 | 0.085 | 19 | 2.3 | 2.7 |
| DO3316P-333_L_ | 33 | 20,10 | 0.10 | 15 | 2.0 | 2.1 |
| DO3316P-473_L_ | 47 | 20,10 | 0.14 | 12 | 1.6 | 1.8 |
| DO3316P-683_L_ | 68 | 20,10 | 0.20 | 10 | 1.4 | 1.5 |
| DO3316P-104_L_ | 100 | 20,10 | 0.28 | 9 | 1.2 | 1.3 |
| DO3316P-154_L_ | 150 | 20,10 | 0.40 | 6 | 1.0 | 1.0 |
| DO3316P-224_L_ | 220 | 20,10 | 0.61 | 5 | 0.80 | 0.80 |
| DO3316P-334_L_ | 330 | 20,10 | 1.02 | 4.5 | 0.60 | 0.60 |
| DO3316P-474_L_ | 470 | 20,10 | 1.27 | 3.5 | 0.50 | 0.50 |
| DO3316P-684_L_ | 680 | 20,10 | 2.02 | 2.5 | 0.40 | 0.40 |
| DO3316P-105_L_ | 1000 | 20,10 | 3.00 | 2.0 | 0.30 | 0.30 |
| DO3316P-155_L_ | 1500 | 20,10 | 4.49 | 1.7 | 0.29 | 0.27 |
| DO3316P-335_L_ | 3300 | 20,10 | 8.97 | 1.1 | 0.19 | 0.17 |
High energy storage and low resistance DO3316P-102ML_ for EL driver applications
Shape and Dimensions:
