Product Name: |

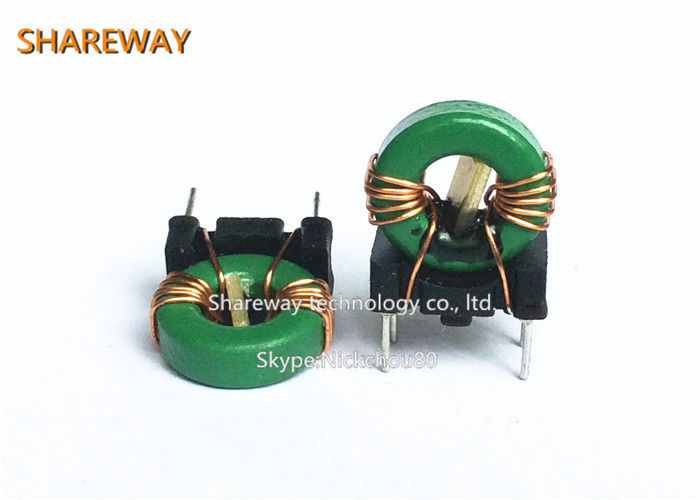

Wide Permeability Range Common Mode Toroidal Choke Core |
Inductance: |
258uH |
Type: |
Vertical |
Item Name: |
Bifilar Inductor |
Inductance: |
Customized For Bifilar Inductor |
Sample: |
Free Samples |
Product Name: |
Wide Permeability Range Common Mode Toroidal Choke Core |
Inductance: |
258uH |
Type: |
Vertical |
Item Name: |
Bifilar Inductor |
Inductance: |
Customized For Bifilar Inductor |
Sample: |
Free Samples |
Wide permeability range common mode toroidal choke core
E General information:
It is recommended that the temperature of the part does not exceed 105°C under
worst case operating conditions.
•Ambient temperature: -40°C to +65°C (refering to IR)
•Operating temperature: -40°C to +105°C
•Storage temperature (in tray packaging): -20°C to +40°C; 75% RH max.
•Test conditions of Electrical Properties: 20°C, 33% RH
if not specified differently
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz / 5 mA | L | 258 | μH | ±20% |
| Rated inductance | 10 kHz / 5 mA / IR | LR | 200 | μH | typ. |
| Rated current | ΔT = 40 K | IR | 1.2 | A | max. |
| Saturation current | |ΔL/L| < 10% | Isat | 0.6 | A | typ. |
| DC Resistance | @ 20°C | RDC | 0.4 | Ω | max. |
| Self resonant frequency | fres | 3.0 | MHz | typ. |
