Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
Power Inductor Electronic Toroidal Choke Coil With / Without Base |
Type: |
Ferrite Ring Core Inductorb |
Inductance: |
557uH |
Material: |
Core |
Craft: |
Wire Wound |
Base: |
With / Without Base |
Product Name: |
Power Inductor Electronic Toroidal Choke Coil With / Without Base |
Type: |
Ferrite Ring Core Inductorb |
Inductance: |
557uH |
Material: |
Core |
Craft: |
Wire Wound |
Base: |
With / Without Base |

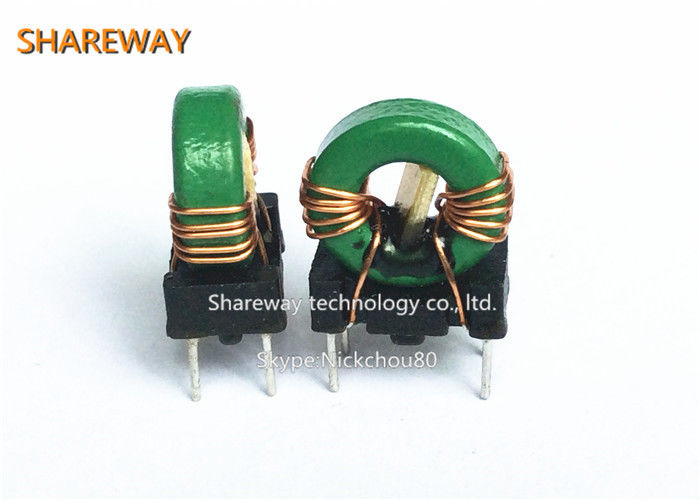

power inductor electronic toroidal choke coil with / without base
E General information:
It is recommended that the temperature of the part does not exceed 105°C under
worst case operating conditions.
•Ambient temperature: -40°C to +65°C (refering to IR)
•Operating temperature: -40°C to +105°C
•Storage temperature (in tray packaging): -20°C to +40°C; 75% RH max.
•Test conditions of Electrical Properties: 20°C, 33% RH
if not specified differently
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 kHz / 5 mA | L | 557 | μH | ±20% |
| Rated inductance | 10 kHz / 5 mA / IR | LR | 450 | μH | typ. |
| Rated current | ΔT = 40 K | IR | 1.1 | A | max. |
| Saturation current | |ΔL/L| < 10% | Isat | 0.7 | A | typ. |
| DC Resistance | @ 20°C | RDC | 0.7 | Ω | max. |
| Self resonant frequency | fres | 2.5 | MHz | typ. |
