Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: 1500pcs/reel
Delivery Time: Stock or 3 weeks
Supply Ability: 3000K.PCS/Month
Product Name: |
8.2uH Power Supply Fixed Inductor For Computer And EMI |
Usage: |
Computer And EMI |
Material: |
Ferrite, Copper Wire, Tin, Etc |
External Dimensions: |
4532 |
Type: |
8.2 SMD Inductor |
Sample: |
Free Samples Available |
Product Name: |
8.2uH Power Supply Fixed Inductor For Computer And EMI |
Usage: |
Computer And EMI |
Material: |
Ferrite, Copper Wire, Tin, Etc |
External Dimensions: |
4532 |
Type: |
8.2 SMD Inductor |
Sample: |
Free Samples Available |

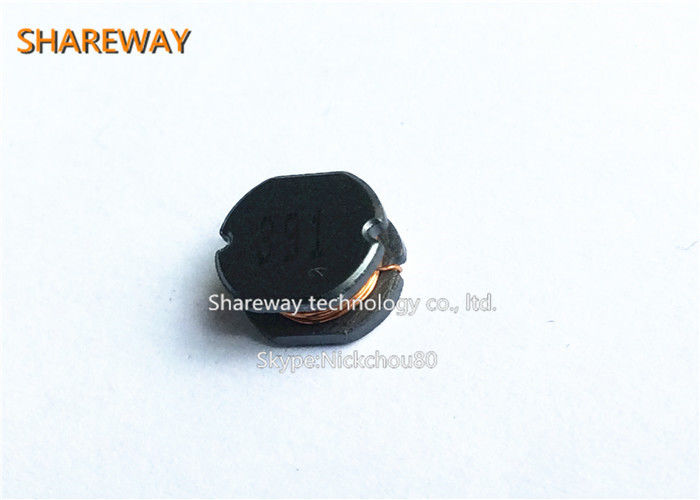

8.2uH Power Supply Fixed Inductor for computer and EMI
Features:
Various high power inductors are superior to be high saturation for surface mounting
Put the electrode with femit core directly, a small surface area allow a high mounting density.
Applicationgs:
MP3,Mpeg4,VTR,LD TV, communication equipments, DC/DC conventers, etc...
E General information:
It is recommended that the temperature of the part does not exceed 125°C under
worst case operating conditions.
•Ambient temperature: -40°C to +85°C (refering to IR)
•Operating temperature: -40°C to +125°C
•Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.
•Coplanarity of the terminal pads: 120μm
•Test conditions of Electrical Properties: 20°C, 33% RH
D Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | 10 KHz/ 100 mV | L | 8.2 | μH | ±20% |
| Rated Current | ΔT = 40 K | IR | 1.50 | A | max. |
| Saturation Current | |ΔL/L| < 10% | Isat | 1.80 | A | typ. |
| DC Resistance | @ 20°C | RDC | 0.146 | Ω | max. |
| DC Resistance | @ 20°C | RDC | 0.116 | Ω | typ. |
| Self Resonant Freq. | @ 20°C | fres | 30 | MHz | typ. |
| Rated Voltage | @ 20°C | UR | 80 | VDC | max. |
