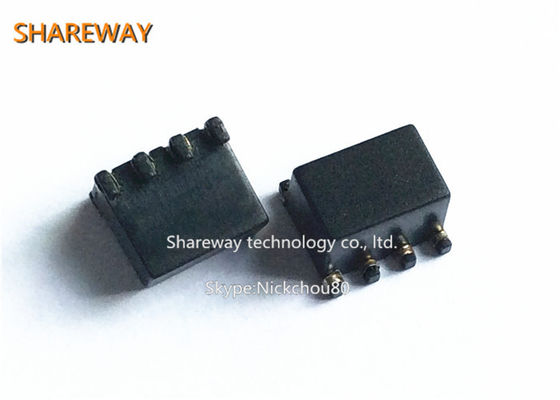

PE-68624NL Common Mode Chokes Suited 3+3 Pin for LAN and Telecom

PE-68624NL Common Mode Chokes Suited 3+3 Pin for LAN and Telecom
PE-68624NL Common Mode Chokes Suited 3+3 Pin for LAN and Telecom

Large Image :  PE-68624NL Common Mode Chokes Suited 3+3 Pin for LAN and Telecom

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: PE-68624NL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: PE-68624NL Common Mode Chokes Suited For LAN And Telecom Applications Type: Common Mode Chokes
Application: LAN And Telecom Applications Mount: Surface Mount And Through Hole Versions
Pin: 3+3,4+4 Shield: Unshielded
High Light:

common mode toroidal chokes

,

common mode power line choke

PE-68624NL Common Mode Chokes Suited for LAN and Telecom Applications


Description:

  • Surface Mount Common Mode Chokes Suited for LAN and Telecom Applications
  • Reduces radiated EMI emissions
  • Filters common mode noise for EMI reduction
  • Common mode attenuation from 100 kHz to 1 GHz
  • RoHS peak reflow solder temperature rating 245°C



Electrical Specifications @ 25°C - Operating Temperature 0°C to 70°C
Part Number Primary
Inductance
OCL
(μH MIN)
Common Mode Attenuation
(dB TYP)
DCR
(Ω MAX)
100 KHz 1 MHz 10 MHz 30 MHz 50 MHz 100 MHz 300 MHz 500 MHz MHz 1 GHz
PE-68624NL 47 11 27 40 44 42 36 26 17 - 0.40
PE-65855NL 4700 41 43 49 39 34 26 20 20 12 1.0
PE-65857NL 22.5 7 20 30 37 38 34 24 13 - 0.22
PE-68627NL 24 8 21 32 36 37 36 30 20 - 0.25
PE-65854NL 47 3 19 32 36 35 29 12 6 - 0.40
PE-67540NL 100 14 33 44 48 49 44 34 29 20 0.60
T8008NL 47 7 27 40 44 42 36 26 - - 0.40





PE-68624NL Common Mode Chokes Suited for LAN and Telecom Applications


Shape and Dimensions:

PE-68624NL Common Mode Chokes Suited 3+3 Pin for LAN and Telecom 0
