Ethernet Magnetic Transformers H1081NL Designe with transceivers

Name: Ethernet Magnetic Transformers H1081NL Designe with transceivers
Brand: Shareway
SKU: H1081NL
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (122 reviews)

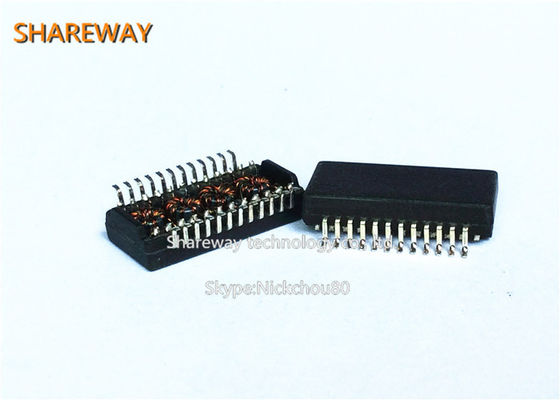

Large Image : Ethernet Magnetic Transformers H1081NL Designe with transceivers

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Shareway
Certification:	CE UL RoHS ISO9001:2008
Model Number:	H1081NL

Payment & Shipping Terms:

Minimum Order Quantity:	100/500/1000
Price:	Supportive
Packaging Details:	20/tube,350/reel
Delivery Time:	Stock or 3 weeks
Payment Terms:	TT,Paypal
Supply Ability:	3000K.PCS/Month

Contact Now

Detailed Product Description

Product Name:	Ethernet Magnetic Transformers H1081NL Designed For Use With Transceivers	Application:	Transceivers
Weight:	1.6 Grams	Coil Structure:	Toroidal
Usage:	Pulse	Coil Number:	Autotransformer
High Light:	1000base t transformer , telecom isolation transformer

Ethernet Magnetic Transformers H1081NL Designed for use with transceivers

Description:

10/100Base-TX Single Port Transformers Modules
RoHS peak reflow temperature rating 245°C
Meets IEEE 802.3 specification
Designed for use with transceivers for AMD & Micrel

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

Part Number	Turns Ratio (±5%)		Insertion Loss (dB MAX)	Return Loss (dB MIN)			Cosstalk (dB MIN)			Hipot (Vrms MIN)
Part Number	TX	RX	100 kHz-100 MHz	30 MHz	60 MHz	80 MHz	30 MHz	60 MHz	100 MHz	Hipot (Vrms MIN)
H1081NL	1:1.141	1:1	-2.0	-18	-12	-11	-45	-38	-34	1500
