1000Base-T Ethernet Magnetic Transformers H1028NL 28.58*16.26*5.84mm

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

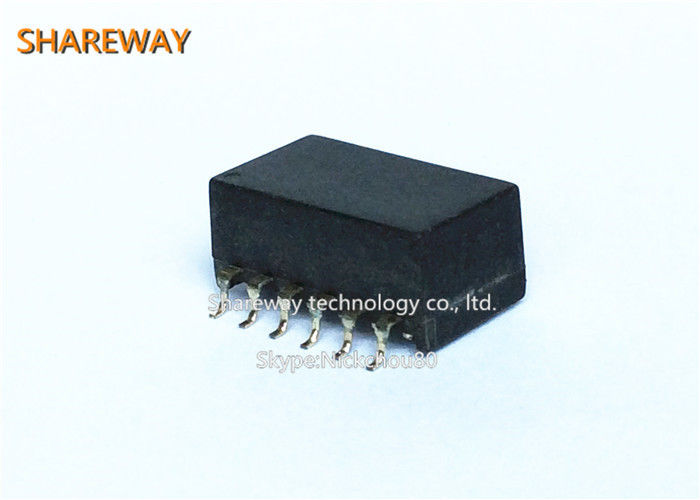

1000Base-T Ethernet Magnetic Transformers H1028NL 28.58*16.26*5.84mm

1000Base-T Ethernet Magnetic Transformers H1028NL 28.58*16.26*5.84mm
1000Base-T Ethernet Magnetic Transformers H1028NL 28.58*16.26*5.84mm

Large Image :  1000Base-T Ethernet Magnetic Transformers H1028NL 28.58*16.26*5.84mm

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: H1028NL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 250/reel,15/tube
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: 28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL Speed: Gigabit /1000Base-T
Type: Ethernet Magnetic Transformers Ratio TX/RX: 1:1
Application: Transceivers Requiring Pin: 20Pins
High Light:

1000base t transformer

,

telecom isolation transformer

28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL


Description:

  • 10/100Base-TX Dual Port Transformer Modules For Use with Transceivers Requiring 1:1 Transmit and Receiving Turns Ratios
  • RoHS reflow temperature rating 245°C
  • Meets IEEE 802.3 specification
  • Some models offer AutoMDIX capability



Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

Part
Number
Insertion
Loss
(dB MAX)
Return Loss
(dB TYP)
Crosstalk
(dB TYP)
Differential to Common
Mode Rejection
(dB MIN)
Hipot
(Vrms MIN)
0.1-100 MHz 2-30 MHz 40 MHz 50 MHz 60-80 MHz 1 MHz 30 MHz 60 MHz 100 MHz 1-60 MHz 60-200 MHz
H1028NL -0.5 -21 -17 -14.5 -12 -65 -55 -45 -35 -45 -35 1500
H1200NL -1.0 -16 -14.4 -13 -12 -50 -45 -40 -35 -37 -35 1500





28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL


Shape and Dimensions:

1000Base-T Ethernet Magnetic Transformers H1028NL 28.58*16.26*5.84mm 0
