Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications

Large Image : Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Shareway
Certification:	CE UL RoHS ISO9001:2008
Model Number:	H1164NL

Payment & Shipping Terms:

Minimum Order Quantity:	100/500/1000
Price:	Supportive
Packaging Details:	250/reel,15/tube
Delivery Time:	Stock or 3 weeks
Payment Terms:	TT,Paypal
Supply Ability:	3000K.PCS/Month

Contact Now

Detailed Product Description

Product Name:	Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications	Application:	Auto MDI/MDIX Applications
Hipot:	1500 Vrms MIN	Speed:	10/100Base-TX
Latch:	Down	Materials:	Ferrit/ Ferrite/Cu-Ni-Sn
High Light:	1000base t transformer , telecom isolation transformer

Ethernet Magnetic Transformers H1164NL For Auto MDI/MDIX Applications

Description:

10/100Base-TX Transformer Modules For Auto MDI/MDIX Applications
RoHS peak reflow temperature rating 245°C
Symmetrical transmit and receive channels for Auto MDI/MDIX capability
Approved for use with the Broadcom BCM5226 and Level One LXT9784
Meets IEEE 802.3 specification

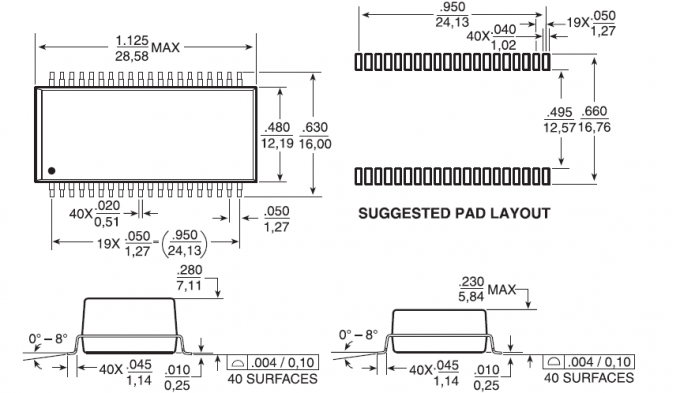

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

Part Number	Insertion Loss (MAX)	Return Loss (dB MIN)				Differential to Common Mode Rejection (dB MIN)		Crosstalk (dB MIN)				Hipot (Vrms MIN)
Part Number	0.1-100 MHz	2-30 MHz	40 MHz	50 MHz	80 MHz	1-60 MHz	60-200 MHz	1 kHZ	30 MHz	60 MHz	100 MHz	Hipot (Vrms MIN)
H1164NL	-1.0	-18	-14.4	-13.1	-12	-37	-25	-65	-45	-40	-33	1500
HX1234NL	-1.4	-18	-14.4	-13.1	-12	-37	-25	-65	-45	-40	-33	1500
