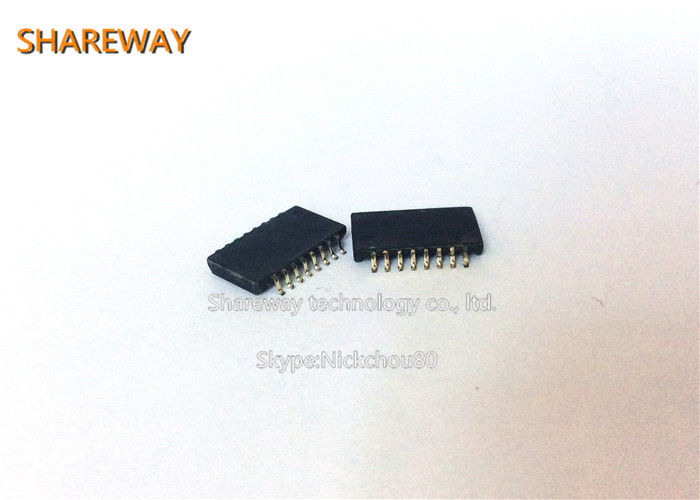

8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules

8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules
8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules

Large Image :  8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: H5014NL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Contact Now
Detailed Product Description
Product Name: 8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules Core Number: 8
Type: Discrete Transformer Modules Pin: 48pins
Size: 27.81*12.19*7.24mm Speed: 10/100/1000/10G Base-TX
High Light:

small electric transformer

,

smd power transformer

8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules

Description:

  • Dual port lan transformre
  • 10/100/1000/10G Base-T Pulse Lan Discrete Transformer Modules
  • Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
  • Hipot Test:  1500Vrms MIN
  • Operating Temperature Range: 0℃ TO 70℃
  • 720mA Current Capability--It is suitable for IEEE802.3
  • ColiStructure : Toroidal



Applications:

  • local area network switch
  • gigabit ethernet switcher
  • Intelligent home system
  • Field bus terminal block



8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules

Shape and Dimensions:

8 Cores H5014NL Dual Port Pulse Lan Discrete Transformer Modules 0

Tag:

smd power transformer,

small electric transformer,

surface mount transformer
