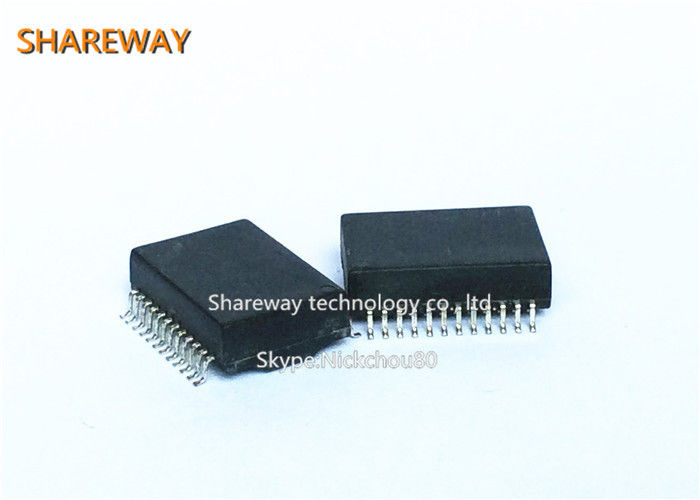

Single port 24 pins H5004ENL Ethernet Isolation Lan Transformer

Single port 24 pins H5004ENL Ethernet Isolation Lan Transformer
Single port 24 pins H5004ENL Ethernet Isolation Lan Transformer

Large Image :  Single port 24 pins H5004ENL Ethernet Isolation Lan Transformer

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: H5004ENL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Contact Now
Detailed Product Description
Product Name: Single Port 24 Pins H5004ENL Ethernet Isolation Lan Transformer Type: Isolation Lan Transformer
Series: Dual Port GigE Transformer Pin No: 24
Termination Style: SMD/SMT Samples: Free Offer
High Light:

small electric transformer

,

smd power transformer

Single port 24 pins H5004ENL Ethernet Isolation Lan Transformer

Description:

Operating Temperature: 0℃～70℃.

Turns ratio : 1CT:1CT

Polarity : Per schematic

Insertion Loss: 100KHz: -1.2dB Max

Inductance: 350 uH MIN

1500VRMS min @ 60 seconds

Size:17.5*12.2*5.72mm

Pin: 24

Core No. :4

Speed : 1000Base-T

RoHS: with

Mounting :SMD/SMT





Single port 24 pins H5004ENL Ethernet Isolation Lan Transformer

Shape and Dimensions:

Single port 24 pins H5004ENL Ethernet Isolation Lan Transformer 0

Tag:

smd power transformer,

small electric transformer,

surface mount transformer
