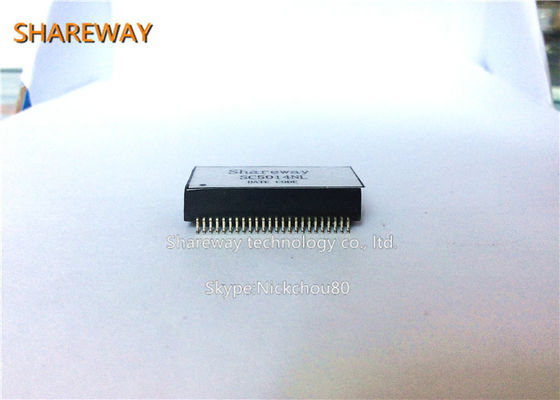

Product Name: Single Port Isolation Transformer H1302NL For Thru-Hole Or SMD Usage: Pulse
Application: NIC/HUB/Switch/Router/PC System/Printer/Server TX:RX: 1CT:1CT
Core: 2 Inductance: 350uH
High Light:

small electric transformer

,

smd power transformer

Single port Isolation transformer H1302NL For Thru-Hole Or SMD


Description:

Size: 12.7*7.11*5.97mm

Core No. : 2

Pin No. : 16

Inductance : 350 uH MIN

Type : lan transformer

Speed: 10/100Base-T

Hi-pot :1500Vrms





PARAMETER SPECIFICATIONS
OPERATING TEMPERATURE 0 - 70
TURNS RATIO 1 :1 ±2%
POLARITY PER SCHEMTIC
INSERTION LOSS 100KHz 1-125 MHz
-1.2 dB MAX -0.2 -0.002*f ^1.4 dB MAX

RETURN LOSS

(Z OUT = 100 OHM ±15%)

1-30MHz 30-60HMz 60-80MHz
-16 dB MIN

-10+20*LOG10

(f/60 MHz) dB MIN

-10 dB MIN

INDUCTANCE(OCL)

(MEDIA SIDE, 0 -70 )

350 uH MIN(MEASUREN AT 100KHz,100mVRMS AND WITH 8mA DC BIAS)

CROSSTALK, ADJACENT

CHANNELS

1MHz 10-100MHz
-50 dB MIN -50+22*LOG 10(f/10) dB MIN
DIFFERENTIAL TO COMMON MODE REJECTION 1MHz 30-200MHz
-42dB MIN -15+20*LOG 10(f/10) dB MIN

DC RESISTANCE

1/2 WINDING

.65 OHMS MAX

DC RESISTANCE

IMBALANCE

.065 OHMS MAX (CENTER TAP SYMMETRY)

INPUT -OUTPUT

ISOLATION

1500 VRMS MIN @ 60 SECONDS
