HM1225NL Ethernet Magnetic Transformers 8+8 Pins Ethernet NON PoE 100BASE-T

Name: HM1225NL Ethernet Magnetic Transformers 8+8 Pins Ethernet NON PoE 100BASE-T
Brand: Shareway
SKU: HM1225NL
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (178 reviews)

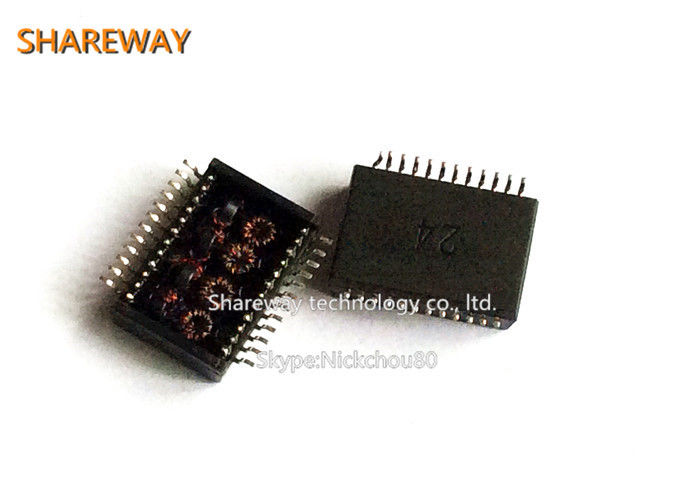

Large Image : HM1225NL Ethernet Magnetic Transformers 8+8 Pins Ethernet NON PoE 100BASE-T

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Shareway
Certification:	CE UL RoHS ISO9001:2008
Model Number:	HM1225NL

Payment & Shipping Terms:

Minimum Order Quantity:	100/500/1000
Price:	Supportive
Packaging Details:	Reel ,Tube
Delivery Time:	Stock or 3 weeks
Payment Terms:	TT,Paypal
Supply Ability:	5000K.PCS/Month

Contact Now

Detailed Product Description

Pin:	16	Speed:	10/100Base-T
Core No:	2	Port:	2
Sample:	Free	Product Name:	HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric
High Light:	1000base t transformer , gigabit ethernet transformer

HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric

Description:

1. Compliant with IEEE 802.3u
2. 350µH OCL with 8mA bias, MSL: 3
3. IC grade transfer-molded package withstands
4. 235°C peak temperature profile. RoHS version withstands 245°C
5. AS9100C Certified (Based on and including ISO 9001:2008)

Electrical Specifications @ 25°C

Isolation Voltage: 1,500Vrms
OCL @100KHz, 8mA: 350µH min
CMR (0.1-100MHz): -40dB typ
Crosstalk (0.1-100MHz): -40dB min
Insertion Loss (0.1-100MHz) -1.1dB max
Return Loss (0.5-30MHz): -18dB min
(40MHz): -15.5dB min
(50MHz): -13.6dB min
(60-80MHz): -12dB min

HM1225NL 8+8 Pins Ethernet (NON PoE) 100BASE-T Lan Transformator Electric

Shape and Dimensions:
