6+6 Pins Ethernet Magnetic Transformers , HM0068ANL Single Port Lan Transformer in Transformers

Name: 6+6 Pins Ethernet Magnetic Transformers , HM0068ANL Single Port Lan Transformer in Transformers
Brand: Shareway
SKU: HM0068ANL
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (150 reviews)

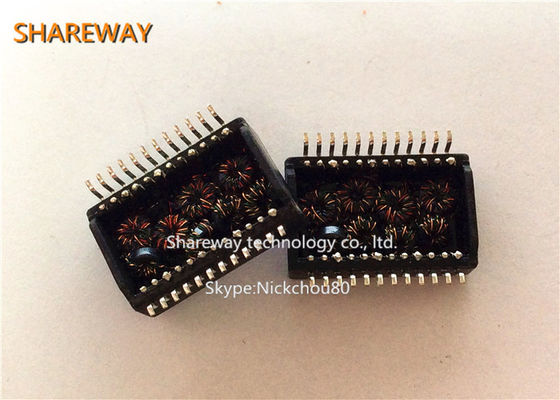

Large Image : 6+6 Pins Ethernet Magnetic Transformers , HM0068ANL Single Port Lan Transformer in Transformers

Product Details:

Place of Origin:	Guangdong China
Brand Name:	Shareway
Certification:	CE UL RoHS ISO9001:2008
Model Number:	HM0068ANL

Payment & Shipping Terms:

Minimum Order Quantity:	100/500/1000
Price:	Supportive
Packaging Details:	Reel ,Tube
Delivery Time:	Stock or 3 weeks
Payment Terms:	TT,Paypal
Supply Ability:	5000K.PCS/Month

Contact Now

Detailed Product Description

Application:	PCB	Port:	1
Pin:	12	Hipot:	1500V
Interface:	10/100Base-T	Product Name:	6+6 Pins HM0068ANL Single Port Lan Transformer In Transformers
High Light:	1000base t transformer , gigabit ethernet transformer

6+6 Pins HM0068ANL Single Port Lan Transformer in Transformers

Description:

1. Turn Ratio(±2%): 1CT:1CT
2. OCL(100KHz/100mV@8mA): 350uH MIN
3. Insertion Loss(dB MAX): -1.1dB(0.3-100MHz)
4. Return Loss(dB TYP): -20dB(30MHz),-14dB(60MHz),-11.5dB(80MHz)
5. Crosstalk(dB TYP): -45dB(30MHz),-40dB(60MHz),-35dB(100MHz)
6. DCMR(dB TYP): -42dB(30MHz),-37dB(50MHz),-33dB(100MHz)
7. HI-POT:1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec
8. Operating Temperature: -40℃TO+85℃
9. RoHS compliance:YES

6+6 Pins HM0068ANL Single Port Lan Transformer in Transformers

Shape and Dimensions:
