Name: high current and low loss 38L361C flat coil wound power inductors
Brand: SHAREWAY TECHNOLOGY CO., LTD.
SKU: 38L361C
Price: 0.30 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: 38L361C

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 550pcs/reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                wire wound chip inductors, high current power inductors


Product Name:	High Current And Low Loss 38L361C Flat Coil Wound Power Inductors	Size:	10.410.45.6mm
Inductance:	0.36 ±30% μH	DC Current:	18A
Saturation Current:	27A	Sample:	Free

Product Name:	High Current And Low Loss 38L361C Flat Coil Wound Power Inductors
Size:	10.410.45.6mm
Inductance:	0.36 ±30% μH
DC Current:	18A
Saturation Current:	27A
Sample:	Free

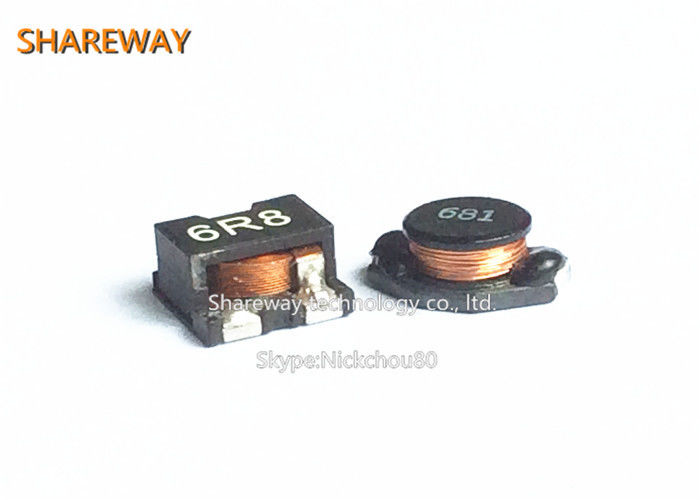

high current and low loss 38L361C flat coil wound power inductors

high current and low loss 38L361C flat coil wound power inductors

FEATURES:

RoHS compliant
High current, low DCR
Surface mount
UL94 V-0 package materials
Pick & place compatible
J-STD-020D reflow
Backward compatible with Sn/Pb soldering systems

The 3800 series is a range of surface mount, flat
coil wound power inductors that is designed for
use where high current and low loss is essential,
such as in laptop computers and plasma screens.

Part number	Inductance (100kHz, 0.1VAC)	DC Current	Saturation Current	DC Resistance
	±10%	Max.	Typ.	Max.
	μH	A	A	mΩ
38L361C	0.36 ±30%	18	27	1.8
38L801C	0.80	16	20	2.5
38L142C	1.40	12.0	15	3.7
38L222C	2.20	9.6	12	5
38L322C	3.20	7.8	10	6.8
38L432C	4.30	6.8	8.8	9.7
38L572C	5.70	5.8	7.3	11.9
38L722C	7.20	5.3	6.6	15.5
38L882C	8.80	4.8	5.9	19.6

high current and low loss 38L361C flat coil wound power inductors

Shape and Dimensions:

high current and low loss 38L361C flat coil wound power inductors 0
