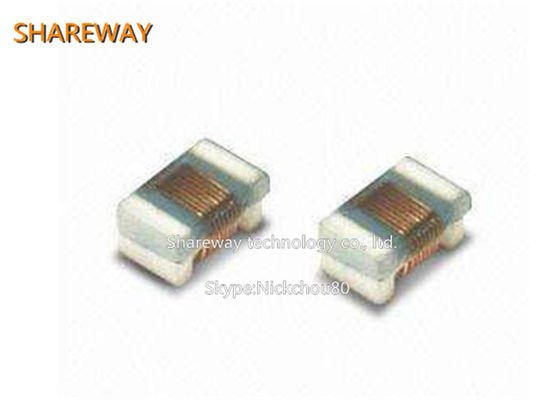

MOX-CMCS-0805S Common Mode Choke Low DC Resistance And High Current Tolerance

MOX-CMCS-0805S Common Mode Choke Low DC Resistance And High Current Tolerance
MOX-CMCS-0805S Common Mode Choke Low DC Resistance And High Current Tolerance

Large Image :  MOX-CMCS-0805S Common Mode Choke Low DC Resistance And High Current Tolerance

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MOX-CMCS-0805S

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: 2000pcs/Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: MOX-CMCS-0805S Low DC Resistance And High Current Tolerance Common Mode Choke Application: Notebooks
Size: 2.0*0.9*0.8 Mount: SMD
Type: Wire Wound Sample: Free
High Light:

surface mount choke

,

common mode power line choke

MOX-CMCS-0805S low DC resistance and high current tolerance Common Mode Choke


Description:

MOX-CMCS series of surface mount common mode chokes are widely
used in cable modems, notebooks, LCD televisions and digital cameras. The
wire wound design provides a low DC resistance and high current tolerance.



Features:
• Epoxy coated and shielded versions available.
• Available in 0805 and 1206 package types.
• Operating temperature: -40°C to +85°C.
• Excellent solderability & resistance to soldering heat.
• RoHS compliant.



Similar Product:

Part Number Common Mode
Impedance ¹
@ 100 MHz (Ω)
Rated
Voltage
V (DC)
Withstanding
Voltage
V (DC)
Rated
Current²
(mA) Max.
DC
Resistance
(Ω) Max.
Insulation
Resistance
(mΩ) Max.
MOX-CMCS-0805S-670S 67.0 50.0 125.0 400.0 0.25 10.0
MOX-CMCS-0805S-900S 90.0 50.0 125.0 330.0 0.35 10.0
MOX-CMCS-0805S-121S 120.0 50.0 125.0 370.0 0.30 10.0
MOX-CMCS-0805S-181S 180.0 50.0 125.0 330.0 0.35 10.0
MOX-CMCS-0805S-261S 260.0 50.0 125.0 300.0 0.40 10.0
MOX-CMCS-0805S-361S 360.0 50.0 125.0 280.0 0.45 10.0





MOX-CMCS-0805S low DC resistance and high current tolerance Common Mode Choke


Shape and Dimensions:

MOX-CMCS-0805S Common Mode Choke Low DC Resistance And High Current Tolerance 0



L (LENGTH) : 2.00 ± 0.10

W (WIDTH) : 1.20 ± 0.10

H (THICKNESS) : 1.00 ± 0.10

S (TERMINAL) : 0.45 ± 0.10

T (TERMINAL) : 0.45 ± 0.10
