Flat Wire Winding Common Mode Choke 2.2-33uH Inductance MOX-HCPI-2015 Series

I have had excellent support from Nick Chou at Shareway. We purchased some parts from him and he delivered the products on time and without incident.

—— Phil Hale -- CEO of PSwitches

I have worked with Nick Chou at Shareway for more than 5 years. The most impressive thing is you can always get quick response from him .

—— David Rosero -- CEO of Isolution Service Center

Hi, I am more than happy to confirm your quality is great and your overall business handle is top notch. You have always been an excellent and very accommodating company to us. If you need me to speak directly to them I am more than happy to do so.

—— Paul Harris-- CEO of AuroraMultimedia

I'm Online Chat Now

Flat Wire Winding Common Mode Choke 2.2-33uH Inductance MOX-HCPI-2015 Series

Flat Wire Winding Common Mode Choke 2.2-33uH Inductance MOX-HCPI-2015 Series
Flat Wire Winding Common Mode Choke 2.2-33uH Inductance MOX-HCPI-2015 Series

Large Image :  Flat Wire Winding Common Mode Choke 2.2-33uH Inductance MOX-HCPI-2015 Series

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MOX-HCPI-2015 Series

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tape & reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description

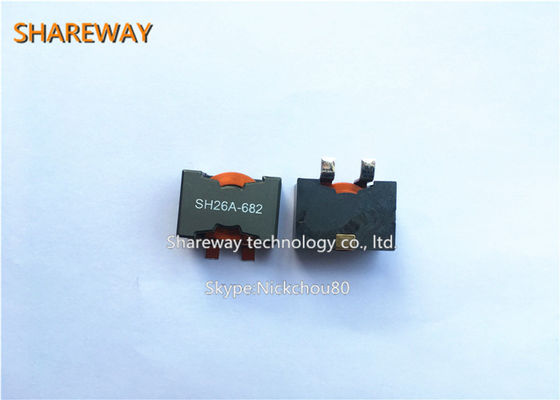

Product Name: 2.2-33uH Flat Wire Winding Common Mode Choke MOX-HCPI-2015 Series Type: Flat Wire Winding Common Mode Choke
Inductance: 2.2-33uH Construction: Magnetically Shielded
Size: 22.5*20.5*14.5mm Measurement Frequency For Inductance: 100KHz/1.0V
High Light:

surface mount choke

,

common mode power line choke

2.2-33uH Flat wire winding Common Mode Choke MOX-HCPI-2015 Series


Description:

  • Temperature rise current : A rise in temperature of core surface is 40°C.
  • Magnetically shielded construction.
  • Flat wire winding allows low DC resistance.
  • Operating temperature: -40°C to +125°C.
  • Storage temperature: -40°C to +85°C.
  • Size : 20.5*22.5*14.5mm



PART NUMBER INDUCTANCE
(μH)
TOLERANCE DCR (mΩ)
NOM / MAX
ISAT (A)
DROP ≤ 30%
IRMS (A)
RISE ≤ 40°C
MOX-HCPI-2015-2R2M 2.20 20% 1.80 / 2.20 60.50 28.50
MOX-HCPI-2015-2R6M 2.60 20% 1.80 / 2.20 49.50 28.50
MOX-HCPI-2015-3R3M 3.30 20% 2.40 / 3.20 48.50 24.50
MOX-HCPI-2015-4R7M 4.70 20% 2.40 / 3.20 35.50 24.50
MOX-HCPI-2015-5R6M 5.60 20% 2.40 / 3.20 30.50 24.50
MOX-HCPI-2015-6R8M 6.80 20% 6.60 / 7.30 34.50 18.50
MOX-HCPI-2015-8R2M 8.20 20% 6.60 / 7.30 29.50 17.50
MOX-HCPI-2015-100M 10.00 20% 6.60 / 7.30 23.50 16.50
MOX-HCPI-2015-150M 15.00 20% 8.60 / 9.50 18.50 16.25
MOX-HCPI-2015-160M 16.00 20% 8.60 / 9.50 18.50 16.00
MOX-HCPI-2015-220M 22.00 20% 8.60 / 9.50 13.50 16.00
MOX-HCPI-2015-330M 33.00 20% 8.60 / 9.50 9.50 16.00





2.2-33uH Flat wire winding Common Mode Choke MOX-HCPI-2015 Series


Shape and Dimensions:

Flat Wire Winding Common Mode Choke 2.2-33uH Inductance MOX-HCPI-2015 Series 0
