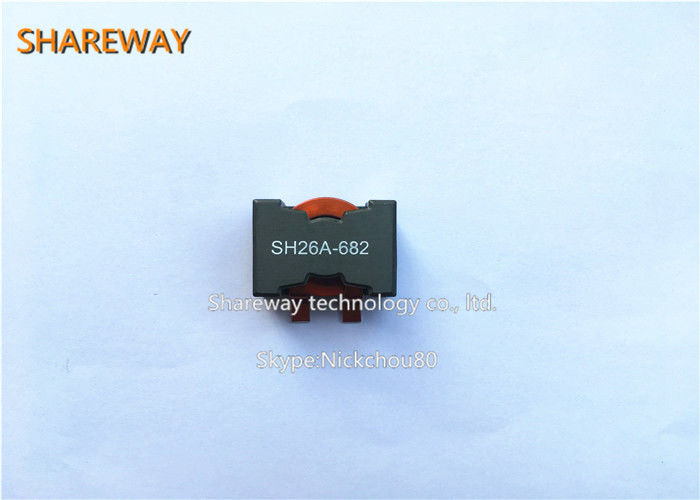

MOX - HCPI - 2623 Series Common Mode Choke With RoHS 26.9X26.5X16.9mm

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: MOX-HCPI-2623 Series

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: 40pcs/tray

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price
Highlight:

common mode toroidal chokes

,

surface mount choke

Product Name:
26.9*26.5*16.9mm MOX-HCPI-2623 Series Common Mode Choke With RoHS
Size:
26.9*26.5*16.9mm
Type:
Common Mode Choke
Inductance:
3.30 - 33uH
Material:
Flat Wire
Sample:
Free Sample
Product Name:
26.9*26.5*16.9mm MOX-HCPI-2623 Series Common Mode Choke With RoHS
Size:
26.9*26.5*16.9mm
Type:
Common Mode Choke
Inductance:
3.30 - 33uH
Material:
Flat Wire
Sample:
Free Sample
MOX - HCPI - 2623 Series Common Mode Choke With RoHS 26.9X26.5X16.9mm

26.9*26.5*16.9mm MOX-HCPI-2623 Series Common Mode Choke with RoHS


Description:

Size:26.9*26.5*16.9mm

Operating temperature: -40°C to +125°C.
Storage temperature: -40°C to +85°C.

Application : DC DC Power Supply





PART NUMBER INDUCTANCE
(μH)
TOLERANCE DCR (mΩ)
NOM / MAX
ISAT (A)
DROP ≤ 30%
IRMS (A)
RISE ≤ 40°C
MOX-HCPI-2623-3R3M 3.30 20% 2.30 / 2.60 105.00 26.00
MOX-HCPI-2623-4R7M 4.70 20% 2.30 / 2.60 70.00 26.00
MOX-HCPI-2623-6R8M 6.80 20% 2.30 / 2.60 54.00 26.00
MOX-HCPI-2623-100M 10.00 20% 2.30 / 2.60 35.00 26.00
MOX-HCPI-2623-150M 15.00 20% 2.30 / 2.60 23.50 26.00
MOX-HCPI-2623-220M 22.00 20% 2.30 / 2.60 14.80 26.00
MOX-HCPI-2623-330M 33.00 20% 2.30 / 2.60 9.45 26.00





26.9*26.5*16.9mm MOX-HCPI-2623 Series Common Mode Choke with RoHS


Shape and Dimensions:

MOX - HCPI - 2623 Series Common Mode Choke With RoHS 26.9X26.5X16.9mm 0
