Product Name: |
10G Ferrite Ethernet Magnetic Transformers 749050010 For Network Filter |
Application: |
Network Filter |
Type: |
High Frequency Lan Transformer |
Base Material: |
Ferrite |
Contact Plating: |
Cu-Ni-Sn |
Operating Temperature: |
0°C - +70°C |
Product Name: |
10G Ferrite Ethernet Magnetic Transformers 749050010 For Network Filter |
Application: |
Network Filter |
Type: |
High Frequency Lan Transformer |
Base Material: |
Ferrite |
Contact Plating: |
Cu-Ni-Sn |
Operating Temperature: |
0°C - +70°C |

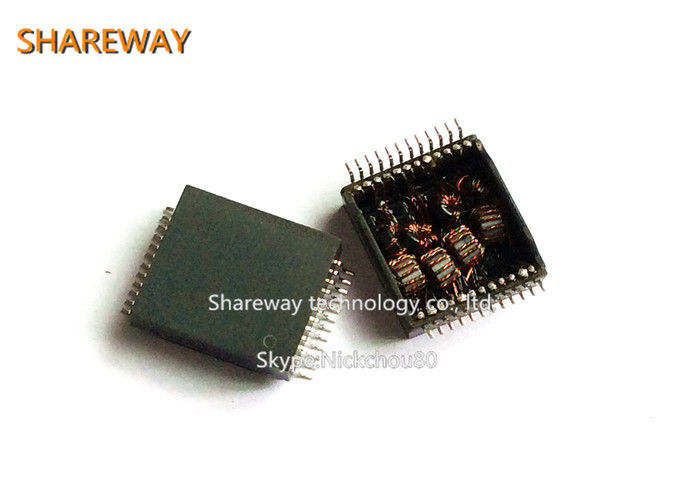

10G Ferrite Ethernet Magnetic Transformers 749050010 For Network Filter
Description:
10G LAN-Transformer
Base material: Ferrit / Ferrite
Wire: 0UEW/Y 180
Contact plating: Cu-Ni-Sn
Potting: UL94V-0
Case: UL94V-0
Size: 15.11*13.97*6.6mm
B electrical properties :
| properties | test conditions | value | unit | tol. | |
| Inductance | 100kHz / 100mV @ 0mA DC-Bias |
OCL | 200 | μH | min. |
| Turns ratio | 100kHz / 100mV | TR | 1 : 1 | ±2% | |
| Insertion Loss | 100k-10MHz | IL | -1,0 | dB | min. |
| 100k-650MHz | -3,0 | ||||
| Return Loss | 1-40MHz | RL | -18,0 | dB | min. |
| 40-400MHz | -10,0 | ||||
| 400-500MHz | -8,0 | ||||
| 500-600MHz | -5,0 | ||||
| Common Mode Rejection |
1-250MHz | CMR | -30 | dB | min. |
| 250-500MHz | -22 | ||||
| Crosstalk | 1-100MHz | CT | -40 | dB | min. |
| 100-500MHz | CT | -30 | dB | min. |
