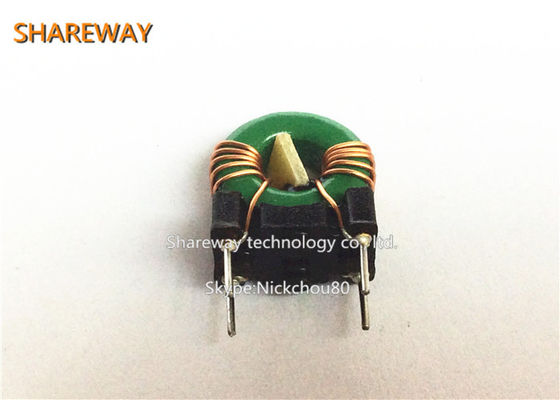

High Current Capacity Common Mode Power Line Choke MOX - CMC Series For PC

High Current Capacity Common Mode Power Line Choke MOX - CMC Series For PC
High Current Capacity Common Mode Power Line Choke MOX - CMC Series For PC

Large Image :  High Current Capacity Common Mode Power Line Choke MOX - CMC Series For PC

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: MOX-CMC Series

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: High Current Capacity Common Mode EMI Choke MOX-CMC Series For PC Type: Common Mode EMI Choke
Application: PC Feature: High Current Capacity
Inductance: 0.51-2.55mH Sample: Free Sample
High Light:

common mode toroidal chokes

,

surface mount choke

High Current Capacity Common Mode EMI Choke MOX-CMC Series for PC


Description:

  • High current capagity
  • Dielectric strength: 3750 Vrms
  • Low core loss.
  • Coil wound on VW-1 rated plastic cased ferrite core.
  • High impedance at low frequency.
  • Operating temperature:-55 to +125



Part number

Inductance

(mH) @ 1KHz

IDC (A) MAX. DCR (Ω) MAX

Wire

Diameter (mm)

MOX-CMC-1511-R51-1 0.51 1.0 0.040 0.41
MOX-CMC-1511-R85-1 0.85 1.0 0.060 0.41
MOX-CMC-1511-1R7-1 1.70 1.0 0.070 0.41
MOX-CMC-1511-2R5-1 2.55 1.0 0.100 0.41
MOX-CMC-1511-4R2-1 4.25 1.0 0.125 0.41
MOX-CMC-1511-R51-2 0.51 2.0 0.030 0.51
MOX-CMC-1511-R85-2 0.85 2.0 0.040 0.51
MOX-CMC-1511-1R7-2 1.70 2.0 0.060 0.51
MOX-CMC-1511-2R5-2 2.55 2.0 0.075 0.51
MOX-CMC-1511-R51-3 0.51 3.0 0.020 0.58
MOX-CMC-1511-R85-3 0.85 3.0 0.030 0.58
MOX-CMC-2041-R85-2 0.85 2.0 0.050 0.58
MOX-CMC-2041-1R7-2 1.70 2.0 0.075 0.58
MOX-CMC-2041-2R5-2 2.55 2.0 0.085 0.58
MOX-CMC-2041-4R2-2 4.25 2.0 0.110 0.58
MOX-CMC-2041-6R8-2 6.80 2.0 0.200 0.58
MOX-CMC-2041-R85-5 0.85 5.0 0.035 0.58
MOX-CMC-3020-1R7-5 1.70 5.0 0.040 0.76
MOX-CMC-3020-4R2-4 4.25 4.0 0.046 0.76
MOX-CMC-3020-6R8-4 6.80 4.0 0.060 0.76
MOX-CMC-3020-42R-2 42.5 2.0 0.200 0.58
MOX-CMC-3020-25R-4 25.5 4.0 0.130 0.76
MOX-CMC-3020-9R3-5 9.35 5.0 0.072 0.91
MOX-CMC-3020-2R5-10 2.55 10 0.020 1.17





High Current Capacity Common Mode EMI Choke MOX-CMC Series for PC


Shape and Dimensions:

High Current Capacity Common Mode Power Line Choke MOX - CMC Series For PC 0

Part Number
A(MAX.) B(MAX.) C(NOM.) D(NOM.)
MOX-CMC-1511
15.25 11.43 10.16 5.08
MOX-CMC-2014 20.32 13.97 12.7 7.62
MOX-CMC-3020 30.48 20.32 17.78 10.16
