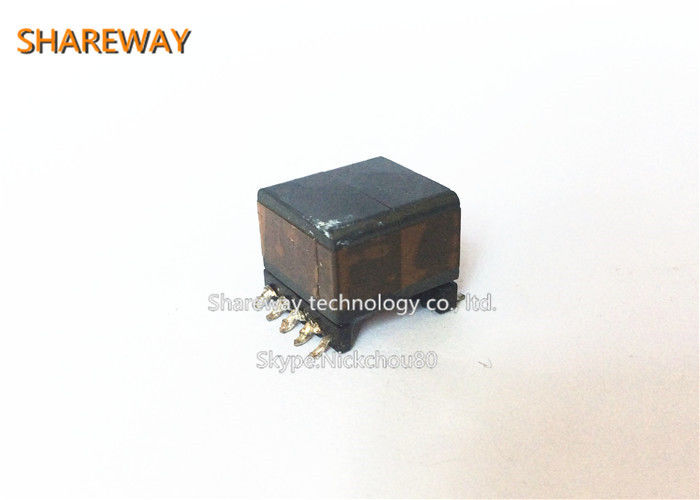

Product Name: MOX-ADSL1 Series Thru-Hole ADSL Line Transformer For Leading Chipsets Application: Leading Chipsets
Type: Thru-Hole ADSL Line Transformer Size: 13.97*13.97*17.09mm
Pin: 5+5 Soldering Methods: Wave, Reflow
High Light:

small electric transformer

,

smd power transformer

MOX-ADSL1 Series Thru-Hole ADSL Line Transformer For leading chipsets


Description:

  • Thru-Hole ADSL Line Transformer
  • Engineered to match all leading chipsets.
  • Low cost.
  • High reliability.
  • Excellent THD.
  • High frequency design.
  • RoHS compliant.
  • Available on tape & reel for auto surface mounting.



Part
Number
Application Turns Ratio ± 2%
Line to Chip
OCL
(mH ± 10%)
Line Side
L
(μh Max.)
Longitudinal Balance
(dB Min.)
DCR
(Ω Max.)
Line Side
THD
(dB Min.)
Schematic Applicable IC
MOX-ADSL1A CPE 1:1 5.000 (1) 15.00 (2) 40(25KHz~1.1 MHz) 3.00 80 @ 30 KHz 1 AD20msP910/918
MOX-ADSL1B CPE 1:1 0.480 (1) 10.00 (2) 40(25KHz~1.1 MHz) 1.00 72 @ 10KHz 1 MTK-20/40
MOX-ADSL1C CO 1:1 0.410 (1) 6.50 (2) 40(25KHz~1.1 MHz) 0.60 72 @ 10 KHz 2 MTK-20/40
MOX-ADSL1D CPE 2:1 0.430 (3) 10.00 (4) 40(25KHz~1.1 MHz) 0.45 80 @ 100 KHz 2 G7000
MOX-ADSL1E CPE 1:1 0.407 (1) 9.00 (2) 40(25KHz~1.1 MHz) 0.66 80 @ 100 KHz 1 EL-1501

• Insertion Loss: 0.5 dB maximum inductance measured @ 10KHz 0.1 VRMS Hipot: 1500 VRMS.
• (1) Measured inductance at pin 1~4 with pin 2~3 shorted.
• (2) Measured leakage inductance at pin 1~4 with 2~3 shorted & 7~8~9~10 shorted.
• (3) Measured inductance at pin 1~5 with pin 2~4 shorted.
• (4) Measured leakage inductance at pin 1~5 with 2~4 shorted & pin 6~9~7~10 shorted



• RoHS Compliant.
• Soldering Methods: Wave, Reflow.
• Operating Temperature: 0°C to +70°C.
• Storage Temperature: -55°C to 125°C.
