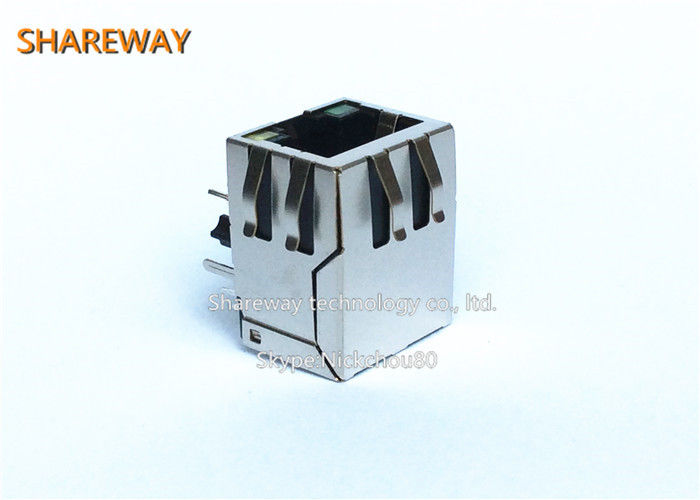

JD0-0003NL All Plastic Rj45 Modular Jack With Finger And Double Lights

JD0-0003NL All Plastic Rj45 Modular Jack With Finger And Double Lights
JD0-0003NL All Plastic Rj45 Modular Jack With Finger And Double Lights

Large Image :  JD0-0003NL All Plastic Rj45 Modular Jack With Finger And Double Lights

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: JD0-0003NL

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description
Product Name: JD0-0003NL All Plastic RJ45 JACK With Finger And Double Lights Pin: 8p8c
Material: ABS/PBT/PA66 Shield: Shielded / Unshielded
Isolation: 1500VAC Or 2250VDC Type: RJ45
High Light:

10 pin rj45 jack

,

ethernet rj45 jack

JD0-0003NL All Plastic RJ45 JACK with Finger and Double Lights


Electronical Specifications:

  1. Turn Ratio @100KHz:   (P1-P2):(J1-J2) = 1:1± 5%                                                                                                        (P3-P6):(J3-J6) = 1:1± 5%
  2. Primary Inductance: 350uH MIN @100KHz, 0.1V 8mA DC BIAS
  3. DC Resistance: (P1-P2):(J3-J6)     1.2 OHMS MAX
  4. Insertion Loss: 1-100MHz       -1.2dB MAX
  5. Return Loss:                  1-30MHz     -16dB MIN                                                                   30-60MHz              -12dB MIN                                          60-80MHz -10dB MIN
  6. Cross Talk: 1-100MHz     -30dB MIN
  7. Common to common mode attrnuation : 1-100MHz   -30dB MIN
  8. Isolatioon : PHY Side to Line Side : 1500VAC  or  2250VDC



Part Number
JD0-0003NL
Application-LAN
ETHERNET(NoN POE)
AutomDX
YES
Bst Circuit
YES
Configuration RX
T,C
Configuration TX
T,C
Contact Mating Area Plating
GOLD 6u"/15u"/30u"
Cores Per Port
SINGLE
Diodes
NO DIODES
LED Option
YELLOW/GREEN
Latch
DOWN
Number of Ports
1X1
PCB
FR4
PCB Mount Angle
SIDE ENTRY
PCB Retaining Post
T POST
Pin Type
THT SOLDER
RoHS Compliant
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search
YES
Shield EMI Tabs
WITH
Shielding
Shielded
Temperature
-0 ~ 70℃
Turns Ratio RX
1CT:1
Turns Ratio TX
1CT:1





JD0-0003NL All Plastic RJ45 JACK with Finger and Double Lights
