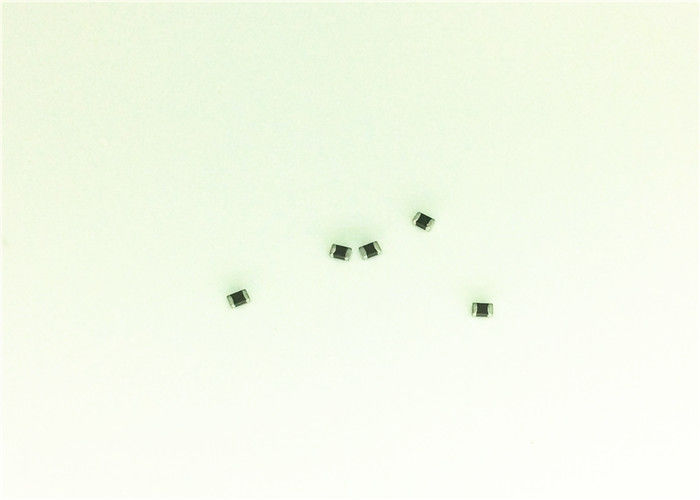

0402 Size Magnetic Beads SMD Power Inductor Ferromagnetic Material

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                dc dc converter inductor, high current power inductors


Product Name:	0402 Size Magnetic Beads SMD Power Inductor	Type:	Magnetic Beads
Size:	0402	Shape:	Square
Material:	Ferromagnetic	Lead Free Status:	RoHS Compliant

Product Name:	0402 Size Magnetic Beads SMD Power Inductor
Type:	Magnetic Beads
Size:	0402
Shape:	Square
Material:	Ferromagnetic
Lead Free Status:	RoHS Compliant

0402 Size Magnetic Beads SMD Power Inductor Ferromagnetic Material

0402 size Magnetic beads SMD Power Inductor

Description:

An inductor, also called a coil, choke or reactor, is a passive two-terminal electrical component that stores energy in a magnetic field when electric current flows through it.[1] An inductor typically consists of an insulated wire wound into a coil around a core.

Classification Reflow Soldering Profile:

Profile Feature		Value
Preheat Temperature Min	Ts min	150°C
Preheat Temperature Max	Ts max	200°C
Preheat Tlme ts from Ts min to Ts max	ts	60-120 seconds
Ramp-up Rate ( TL to Tp)		3°C / seconds max.
Llquldous Temperature	TL	217°C
Tlme tL malntalned above TL	tL	60-150 seconds
Peak package body temperature	Tp	see table below
Tlme wlthin 5°C of actual Peak temperature	tp	20-30 seconds
Ramp-down Rate ( TL to Tp)		6°C / seconds max
Tlme 25°C to Peak temperature		8 minutes max

Properties	Volume mm3 < 350	Volume mm3 350-2000	Volume mm3 >2000
PB-Free Assembly I Package Thickness < 1.6mm	260°C	260°C	260°C
PB-Free Assembly I Package Thickness 1.6mm - 2.5mm	260°C	250°C	245°C
PB-Free Assembly I Package Thickness > 2.5mm	250°C	245°C	245°C
Sn-PB Assembly I Package Thickness < 2.5mm	235°C	220°C
Sn-PB Assembly I Package Thickness > 2.5mm	220°C	220°C
