SMD Power High Frequency Choke Automobile Signal Line Application

SMD Power High Frequency Choke Automobile Signal Line Application
SMD Power High Frequency Choke Automobile Signal Line Application

Large Image :  SMD Power High Frequency Choke Automobile Signal Line Application

Product Details:

Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: LPT4545ER101LP

Payment & Shipping Terms:

Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Detailed Product Description

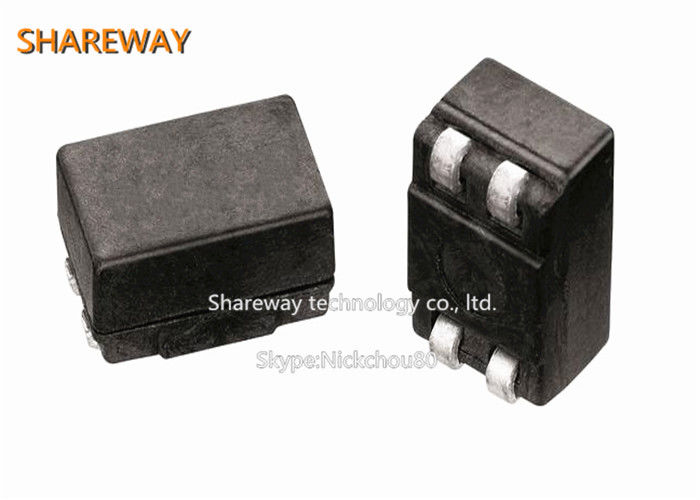

Product Name: SMD Power Common Mode Choke For Automobile Signal Line Inductance: 2x 4700 UH
Weight: 500mg Length: 9.2mm
Width: 6.0mm Height: 5.0mm
High Light:

common mode toroidal chokes

,

common mode power line choke

SMD Power Common Mode Choke for automobile signal line
Description:

Common mode inductors use ferrite cores and are double-wire wound. Low differential mode noise signals suppress interference sources and are difficult to deform in high speed signals. Excellent noise suppression, high common mode noise suppression and low differential mode noise signal suppression.

Common mode filter designs are relatively simple, including common mode capacitors, baluns or common mode inductors. The common-mode capacitor bypasses the common-mode currents of the two input lines to ground. The common-mode inductor exhibits a balanced impedance. That is, the impedances of the power line and the ground line are equal. This impedance exhibits the impedance characteristic to the common-mode noise.





Application:

Common mode inductors are used to suppress EMI noise in electronic equipment. DVC, STB IEEE 1394 line. LCD panel, low voltage differential signal. USB cable for personal computers and peripherals





E General information:
It is recommended that the temperature of the part does not exceed 125°C
under worst case operating conditions.
• Ambient temperature: -40°C to +85°C (refering to IR)
• Operating temperature: -40°C to +125°C
• Storage temperature (on tape & reel): -20°C to +40°C; 75% RH max.
• Test conditions of Electrical Properties: 20°C, 33% RH
if not specified differently
