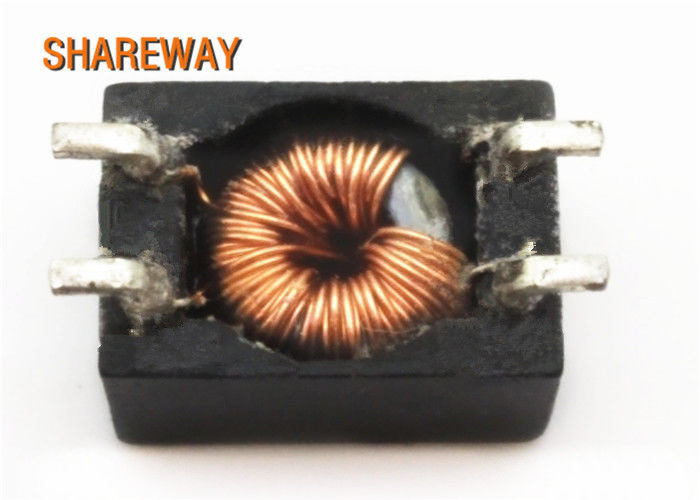

Name: Surface Mount Common Mode Choke 2x 10uH LPT4545ER100LP For Power Supply System
Brand: SHAREWAY TECHNOLOGY CO., LTD.
SKU: LPT4545ER100LP
Price: 0.25 USD
Availability: InStock

Product Details

Place of Origin: Guangdong China

Brand Name: Shareway

Certification: CE UL RoHS ISO9001:2008

Model Number: LPT4545ER100LP

Payment & Shipping Terms

Minimum Order Quantity: 100/500/1000

Price: Supportive

Packaging Details: Reel

Delivery Time: Stock or 3 weeks

Payment Terms: TT,Paypal

Supply Ability: 3000K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                common mode toroidal chokes, common mode power line choke


Product Name:	2x 10 UH Surface Mounted Common Mode Choke LPT4545ER100LP For Power Supply System	Application:	Power Supply System
Mount Type:	Surface Mounted	Inductance:	2x 10 UH
Color:	Silver And Black	Material:	Base,wire,core

Product Name:	2x 10 UH Surface Mounted Common Mode Choke LPT4545ER100LP For Power Supply System
Application:	Power Supply System
Mount Type:	Surface Mounted
Inductance:	2x 10 UH
Color:	Silver And Black
Material:	Base,wire,core

Surface Mount Common Mode Choke 2x 10uH LPT4545ER100LP For Power Supply System

2x 10 uH Surface Mounted Common Mode Choke LPT4545ER100LP for Power supply system

Description:

Product number	744212100
Inductance	2x 10 μH
Impedance	1200 Ω
Rated current	300 mA
DC Resistance	2x 0.24 Ω
Leakage inductance	580 nH
Insulation test voltage	250 V
Rated voltage	80 V
Ambient temperature	-40°C to +85°C
Operating temperature	-40°C to +105°C
Storage temperature	-20°C to +40°C
Test conditions of Electrical Properties	20°C, 33% RH
Preheat - Temperature Min(Tsmin) - Temperature Max (Tsmax) - Time (ts) from (Tsmin to Tsmax)	150°C 200°C 60-120 seconds
Ramp-up rate (TL to TP)	3°C/ second max.
Liquidous temperature (TL) Time (tL) maintained above TL	217°C 60-150 seconds
Peak package body temperature (Tp)	See Table H3
Time within 5°C of actual peak temperature (tp)	20-30 seconds
Ramp-down rate (TP to TL)	6°C/ second max.
Time 25°C to peak temperature	8 minutes max.

Similar Product:

744212101	744212181	744212221	744212331
744212100	744212470	744212510	744212820
