Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 744841210
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
3.575 G Through Hole Power Line Chokes 744841210 Suppression Of Common Mode Noise |
Categories: |
Filters/Common Mode Chokes |
Part Status: |
Active |
Filter Type: |
Power Line |
Number Of Lines: |
2 |
Mounting Type: |
Through Hole |
Product Name: |
3.575 G Through Hole Power Line Chokes 744841210 Suppression Of Common Mode Noise |
Categories: |
Filters/Common Mode Chokes |
Part Status: |
Active |
Filter Type: |
Power Line |
Number Of Lines: |
2 |
Mounting Type: |
Through Hole |

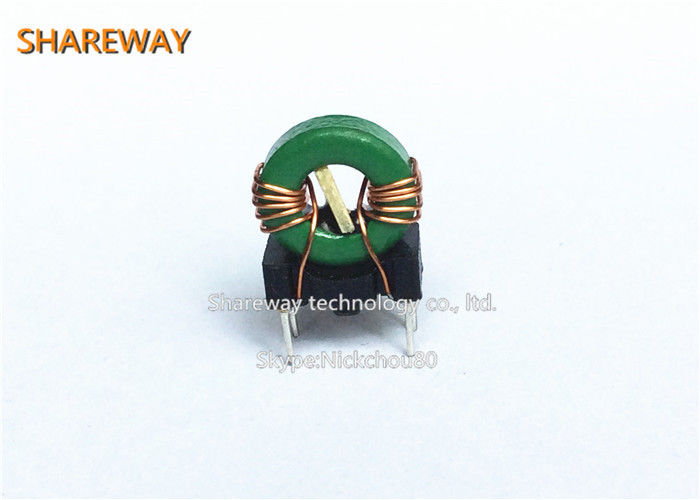

3.575 g Through Hole Power Line Chokes 744841210 Suppression of Common Mode Noise
Description:
Common mode inductors, also known as common mode chokes, are commonly used in computer switching power supplies to filter common mode electromagnetic interference signals. In the design of the board, the common mode inductor also acts as an EMI filter to suppress the electromagnetic radiation generated by the high-speed signal line from radiating outward. The common mode inductor is essentially a bidirectional filter: on the one hand, it is necessary to filter out common mode electromagnetic interference on the signal line, on the other hand, it is necessary to suppress itself from emitting electromagnetic interference and avoid affecting the normal operation of other electronic devices in the same electromagnetic environment.
| Product name | 744841210 |
| Inductance | 2x 100 μH |
| Rated current | 1.5 A |
| DC Resistance | 2x 80 mΩ |
| Rated voltage | 250 V (AC) |
| Insulation test voltage | 1500 V (AC) |
| Storage Temperature | -20°C to 60°C |
| Operating Temperature | -40°C to 125°C |
| Categories | Filters / Common Mode Chokes |
| Part Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 100µH @ 10kHz |
| Current Rating (Max) | 1.5A |
| DC Resistance | 80 mOhm |
| Voltage Rating - AC | 250V |
Similar product:
| 744841210 | 744841247 |
| 744841330 | 744841414 |
| 744844101 | 744844102 |
| 744844221 | 744844470 |
| 744844471 |
