Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
450uH Horizontal Through Hole Common Mode Choke With RoHS |
Mount: |
Through Hole |
Color: |
Red |
Operating Temperature: |
-40 °C Up To +115 °C |
Inductance: |
450 μH |
Rated Current: |
10 A |
Product Name: |
450uH Horizontal Through Hole Common Mode Choke With RoHS |
Mount: |
Through Hole |
Color: |
Red |
Operating Temperature: |
-40 °C Up To +115 °C |
Inductance: |
450 μH |
Rated Current: |
10 A |

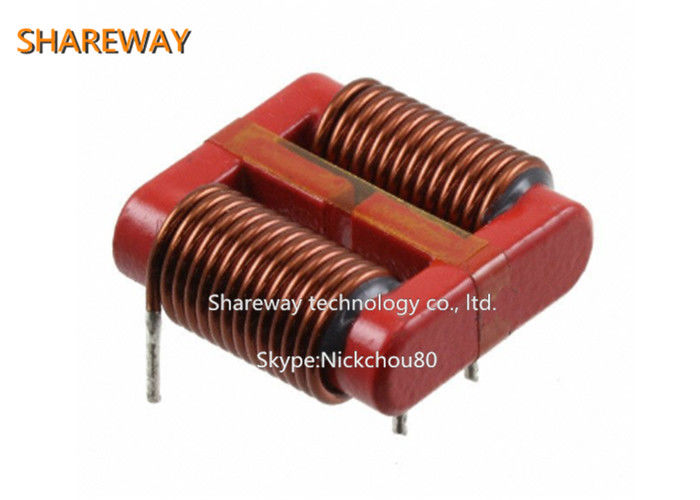

450uH Horizontal Through Hole Common Mode Choke with RoHS
Description:
| Part number | 7448680100 |
| Detailed Description |
450µH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 9.6 mOhm |
| Categories | Filters/Common Mode Chokes |
| Part Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 450µH @ 10kHz |
| Current Rating (Max) | 10A |
| DC Resistance (DCR) (Max) | 9.6 mOhm |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 115°C |
| Mounting Type | Through Hole |
| Dimension | 1.083" L x 0.984" W (27.51mm x 24.99mm) |
| Height (Max) | 0.472" (11.99mm) |
FEATURES:
Winding directly to the closed magnetic path core
Use the flat wire, improving the space factor
Small size, high current
Better heat dissipation
Single phase winding, thereby dramatically reduce stray capacitance
Achieve a high inductance in both common mode and normal mode
Achieve a high magnetic saturation characteristics
No layer-short, higher quality
EMI effect is excellent
