Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: F5585-A
Payment & Shipping Terms
Minimum Order Quantity: 100/500/1000
Price: Supportive
Packaging Details: Tray, Tape or Reel
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal
Supply Ability: 3000K.PCS/Month
Product Name: |
F5585-A Common Mode Line Chokes With Low Cost And High Inductance |
Feature: |
Low Cost And High Inductance |
Current: |
0.25 To 4 A |
Color: |
Black And White |
Terminations: |
Tin-silver Over Tin Over Copper |
Sample: |
Free Samples Available |
Product Name: |
F5585-A Common Mode Line Chokes With Low Cost And High Inductance |
Feature: |
Low Cost And High Inductance |
Current: |
0.25 To 4 A |
Color: |
Black And White |
Terminations: |
Tin-silver Over Tin Over Copper |
Sample: |
Free Samples Available |

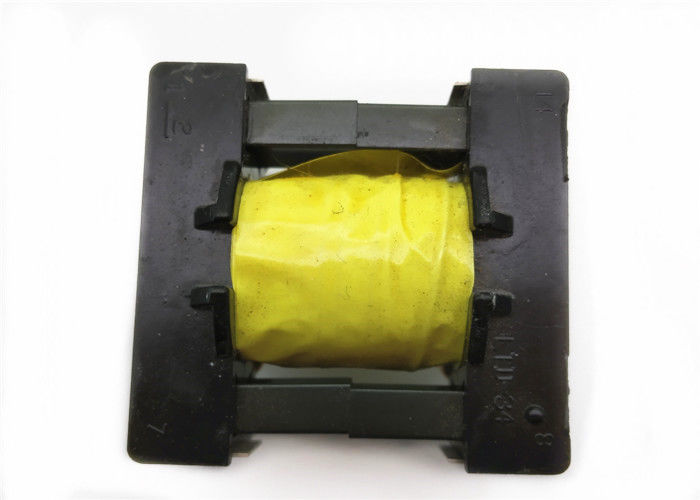

F5585-A Common Mode Line Chokes with low cost and high inductance
Description:
These common mode line chokes provide the best available combination of low cost and high inductance.
• Cost effective design
• 3750 Vrms, one minute isolation between windings
|
Part number |
Inductance (mH) |
Current (Amps) |
SRF (kHz) |
DCR (Ohms) |
| F5585-AL | 82 | 0.25 | 65 | 3.1 |
| F5586-AL | 34 | 0.75 | 100 | 1.30 |
| F5587-AL | 25.3 | 1 | 129 | 0.855 |
| F5588-AL | 15.8 | 1.25 | 170 | 0.540 |
| F5589-AL | 8.2 | 1.5 | 206 | 0.295 |
| F5590-AL | 6.55 | 2 | 230 | 0.215 |
| F5591-AL | 3.45 | 2.5 | 309 | 0.120 |
| F5592-AL | 1.75 | 3 | 420 | 0.070 |
| F5593-AL | 1.20 | 4 | 560 | 0.045 |
F5585-A Common Mode Line Chokes with low cost and high inductance
Dimensions:
