Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,UL
Model Number: MOX-SPHC-SERIES
Payment & Shipping Terms
Minimum Order Quantity: 100/200/500
Price: Supportive
Packaging Details: Reel
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |

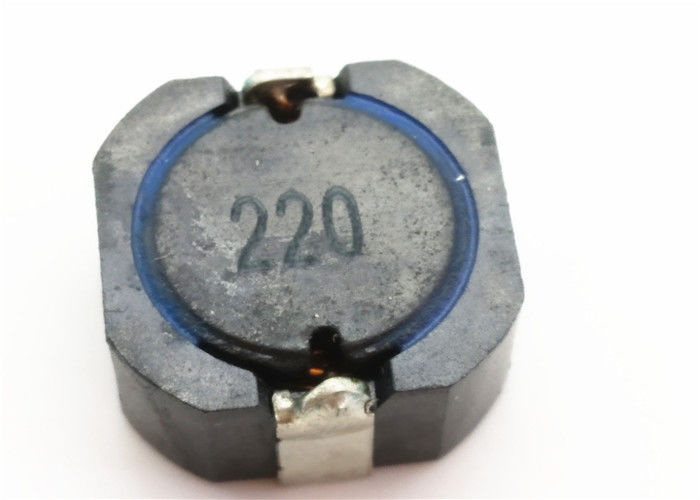

MOX-SPHC-SERIES Surface Mount Ultra High Current Inductors With Shielded Construction. |
Inductance: |
0.47-10.00uH |
Mount Type: |
Surface Mount |
Storage Temperature: |
-55°C TO +125°C |
Operating Temperature: |
-55°C TO +125°C |
ISAT: |
16-65A |
Product Name: |
MOX-SPHC-SERIES Surface Mount Ultra High Current Inductors With Shielded Construction. |
Inductance: |
0.47-10.00uH |
Mount Type: |
Surface Mount |
Storage Temperature: |
-55°C TO +125°C |
Operating Temperature: |
-55°C TO +125°C |
ISAT: |
16-65A |
MOX-SPHC-SERIES surface mount ultra high current inductors with shielded construction
Description:
• Low cost.
• RoHS compliant.
• Handles high transient current spikes without any saturation.
• Low profile package design.
• Composite construction provides ultra low buzz noise.
| MOXIE PART NUMBER |
INDUCTANCE (μH) ±20% @ 0ADC |
IRMS (A) MAX. |
ISAT (A) MAX. |
DCR (mΩ) MAX. |
| MOX-SPHC-1407-R47M | 0.47 | 41 | 65 | 1.2 |
| MOX-SPHC-1407-R68M | 0.68 | 35 | 60 | 1.6 |
| MOX-SPHC-1407-1R0M | 1.00 | 32 | 50 | 2.1 |
| MOX-SPHC-1407-1R5M | 1.50 | 27 | 48 | 2.6 |
| MOX-SPHC-1407-2R2M | 2.20 | 22 | 40 | 4.2 |
| MOX-SPHC-1407-3R3M | 3.30 | 18 | 35 | 6.8 |
| MOX-SPHC-1407-4R7M | 4.70 | 15 | 30 | 11.2 |
| MOX-SPHC-1407-6R8M | 6.80 | 12 | 21 | 14 |
| MOX-SPHC-1407-100M | 10.00 | 10 | 16 | 16.8 |
| MOX-SPHC-1405-R47M | 0.47 | 38 | 65 | 1.3 |
| MOX-SPHC-1405-R68M | 0.68 | 34 | 54 | 1.7 |
| MOX-SPHC-1405-1R0M | 1.00 | 29 | 50 | 2.5 |
| MOX-SPHC-1405-1R5M | 1.50 | 23 | 48 | 4.1 |
| MOX-SPHC-1405-2R2M | 2.20 | 20 | 32 | 5.5 |
| MOX-SPHC-1405-3R3M | 4.70 | 15 | 32 | 9.2 |
| MOX-SPHC-1405-4R7M | 4.70 | 12 | 27 | 15.0 |
| MOX-SPHC-1405-6R8M | 6.80 | 11 | 21 | 18.5 |
| MOX-SPHC-1405-100M | 10.00 | 9 | 16 | 25.5 |
| MOX-SPHC-1403-R47M | 0.47 | 32 | 44 | 2.0 |
| MOX-SPHC-1403-R68M | 0.68 | 28 | 40 | 2.5 |
| MOX-SPHC-1403-R82M | 0.82 | 25 | 38 | 3.0 |
| MOX-SPHC-1403-1R0M | 1.00 | 24 | 36 | 3.5 |
| MOX-SPHC-1403-1R5M | 1.50 | 19 | 28 | 5.5 |
| MOX-SPHC-1403-2R2M | 2.20 | 16 | 20 | 8.0 |
| MOX-SPHC-1403-3R3M | 3.30 | 12 | 18 | 12 |
| MOX-SPHC-1403-4R7M | 4.70 | 10 | 16 | 15 |
| MOX-SPHC-1403-6R8M | 6.80 | 9 | 13 | 22 |
| MOX-SPHC-1403-100M | 10.0 | 7 | 9.5 | 34 |
| MOX-SPHC-1205-R36M | 0.36 | 35 | 40 | 0.8 |
| MOX-SPHC-1205-R47M | 0.47 | 32 | 38 | 0.9 |
| MOX-SPHC-1205-R56M | 0.56 | 30 | 36 | 1.05 |
| MOX-SPHC-1205-R68M | 0.68 | 29.2 | 32 | 1.3 |
| MOX-SPHC-1205-1R0M | 1.0 | 24 | 28 | 2.2 |
| MOX-SPHC-1205-1R5M | 1.5 | 20 | 22 | 2.6 |
| MOX-SPHC-1205-2R2M | 2.2 | 17 | 20 | 4.0 |
MOX-SPHC-SERIES surface mount ultra high current inductors with shielded construction
Dimensions:
A: 13.7mm
B: 13.7mm
C1: 7.0mm
C: 6.5mm
D: 2.5mm
E: 3.0mm
G: 8.1mm
H: 3.4mm
L: 13.8mm
