Product Details
Place of Origin: Guangdong,shenzhen
Brand Name: Shareway
Certification: RoHS,CE,UL
Model Number: MOX-VTIL-6971 SERIES
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Supportive
Packaging Details: Reel/Tray
Delivery Time: Stock Or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 1kk-pcs/month
Product Name: |
MOX-VTIL-6971 Series Vertical Mounting Common Mode Choke For PCB |
Application: |
PCB Board |
Feature: |
Low Core Loss |
Mounting Type: |
Vertical Mounting |
Inductance: |
1.0uH To 5600uH |
Size: |
71.1*30.4*73.8mm |
Product Name: |
MOX-VTIL-6971 Series Vertical Mounting Common Mode Choke For PCB |
Application: |
PCB Board |
Feature: |
Low Core Loss |
Mounting Type: |
Vertical Mounting |
Inductance: |
1.0uH To 5600uH |
Size: |
71.1*30.4*73.8mm |

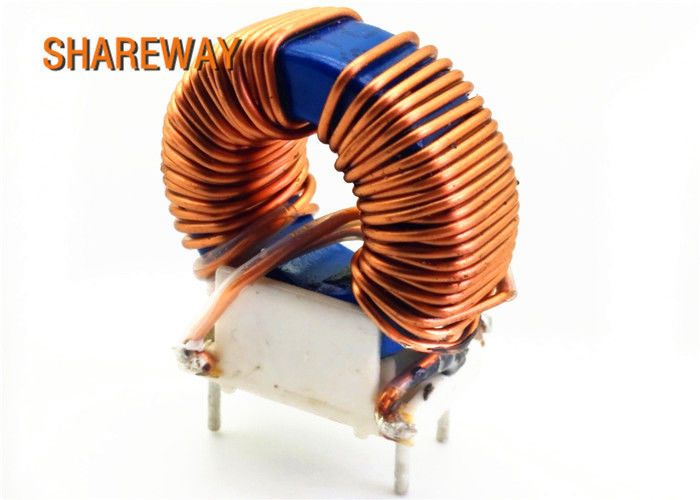

MOX-VTIL-6971 Series Vertical mounting Common Mode Choke for PCB
Description:
Electrical Specifications:
| Part Number | L @ 0 Amps D.C. ( μ H ) ± 2 0 % |
Max RDC. (Ω |
Suggested Rated Current (Amps) |
0% L Drop (DC Amps) |
10% L Drop (DC Amps) |
20% L Drop (DC Amps) |
30% L Drop (DC Amps) |
40% L Drop (DC Amps) |
50% L Drop (DC Amps) |
| MOX-VTIL-6971-1R0M | 1.0 | .002 | 23 | 19.9 | 55.8 | 83.7 | 115.2 | 151.2 | 199.4 |
| MOX-VTIL-6971-2R2M | 2.2 | .003 | 23 | 13.2 | 37.2 | 55.8 | 77.0 | 100.8 | 132.8 |
| MOX-VTIL-6971-3R9M | 3.9 | .003 | 23 | 9.9 | 27.9 | 41.4 | 57.8 | 75.6 | 99.6 |
| MOX-VTIL-6971-5R6M | 5.6 | .003 | 23 | 7.9 | 22.3 | 33.3 | 46.3 | 60.3 | 79.7 |
| MOX-VTIL-6971-100M | 10 | .004 | 23 | 6.6 | 18.5 | 27.9 | 38.5 | 50.4 | 66.4 |
| MOX-VTIL-6971-120M | 12 | .004 | 22.5 | 5.7 | 15.9 | 23.4 | 33.0 | 43.2 | 56.9 |
| MOX-VTIL-6971-150M | 15 | .004 | 22.5 | 5.0 | 14.0 | 20.7 | 28.9 | 37.8 | 49.8 |
| MOX-VTIL-6971-180M | 18 | .005 | 22.5 | 4.4 | 12.3 | 18.3 | 25.7 | 33.3 | 44.3 |
| MOX-VTIL-6971-220M | 22 | .005 | 22.5 | 4.0 | 11.2 | 16.2 | 23.1 | 29.7 | 39.9 |
| MOX-VTIL-6971-270M | 27 | .005 | 22.5 | 3.2 | 9.3 | 13.5 | 19.3 | 25.2 | 33.2 |
| MOX-VTIL-6971-330M | 33 | .006 | 22.5 | 3.1 | 8.6 | 12.6 | 17.7 | 22.5 | 30.6 |
| MOX-VTIL-6971-390M | 39 | .006 | 22.5 | 2.8 | 7.9 | 11.7 | 16.5 | 21.6 | 28.4 |
| MOX-VTIL-6971-470M | 47 | .007 | 22.5 | 2.4 | 6.9 | 9.9 | 14.4 | 18.9 | 24.8 |
| MOX-VTIL-6971-560M | 56 | .008 | 22 | 2.3 | 6.5 | 9.0 | 13.6 | 17.1 | 23.4 |
| MOX-VTIL-6971-680M | 68 | .008 | 22 | 2.1 | 5.9 | 8.1 | 12.2 | 15.3 | 21.0 |
| MOX-VTIL-6971-820M | 82 | .010 | 22 | 11.9 | 5.3 | 7.2 | 11.0 | 14.4 | 18.9 |
| MOX-VTIL-6971-101M | 100 | .012 | 22 | 1.6 | 4.6 | 6.3 | 9.6 | 12.6 | 16.6 |
| MOX-VTIL-6971-121M | 120 | .014 | 22 | 1.5 | 4.2 | 6.3 | 8.8 | 10.8 | 15.3 |
| MOX-VTIL-6971-151M | 150 | .016 | 22 | 1.4 | 4.0 | 5.4 | 8.2 | 10.8 | 14.2 |
| MOX-VTIL-6971-181M | 180 | .018 | 22 | 1.3 | 3.6 | 5.4 | 7.4 | 9.0 | 12.8 |
| MOX-VTIL-6971-221M | 220 | .020 | 22 | 1.2 | 3.2 | 4.5 | 6.8 | 8.1 | 11.7 |
| MOX-VTIL-6971-271M | 270 | .021 | 22 | 1.0 | 2.8 | 3.6 | 5.9 | 7.2 | 10.2 |
| MOX-VTIL-6971-331M | 330 | .023 | 22 | .90 | 2.6 | 3.6 | 5.5 | 7.2 | 9.5 |
| MOX-VTIL-6971-391M | 390 | .025 | 22 | .81 | 2.3 | 3.6 | 5.0 | 6.3 | 8.6 |
| MOX-VTIL-6971-471M | 470 | .041 | 18 | .80 | 2.2 | 3.3 | 4.6 | 6.0 | 7.0 |
| MOX-VTIL-6971-561M | 560 | .045 | 18 | .69 | 1.9 | 2.9 | 4.0 | 5.1 | 6.8 |
| MOX-VTIL-6971-681M | 680 | .047 | 11 | .63 | 1.8 | 2.7 | 3.6 | 4.8 | 6.1 |
| MOX-VTIL-6971-821M | 820 | .050 | 11 | .58 | 1.6 | 2.4 | 3.3 | 4.3 | 5.8 |
| MOX-VTIL-6971-102M | 1000 | .060 | 11 | .51 | 1.4 | 2.1 | 2.9 | 3.9 | 5.0 |
| MOX-VTIL-6971-122M | 1200 | .100 | 7 | .47 | 1.3 | 1.9 | 2.7 | 3.5 | 4.7 |
| MOX-VTIL-6971-152M | 1500 | .110 | 7 | .42 | 1.2 | 1.7 | 2.4 | 3.2 | 4.2 |
| MOX-VTIL-6971-182M | 1800 | .120 | 7 | .39 | 1.1 | 1.6 | 2.2 | 2.9 | 3.9 |
| MOX-VTIL-6971-222M | 2200 | .140 | 7 | .34 | 1.0 | 1.4 | 2.0 | 2.5 | 3.4 |
| MOX-VTIL-6971-272M | 2700 | .150 | 7 | .31 | .87 | 1.3 | 1.8 | 2.3 | 3.1 |
| MOX-VTIL-6971-332M | 3300 | .200 | 5 | .28 | .79 | 1.2 | 1.6 | 2.2 | 2.8 |
| MOX-VTIL-6971-392M | 3900 | .220 | 5 | .26 | .79 | 1.1 | 1.4 | 1.9 | 2.5 |
| MOX-VTIL-6971-472M | 4700 | .240 | 5 | .23 | .65 | .40 | 1.4 | 1.7 | 2.3 |
| MOX-VTIL-6971-562M | 5600 | .270 | 5 | .21 | .59 | .90 | 1.2 | 1.6 | 2.1 |
Dimensions:
