Product Name: |
SMD Power Inductor MOX-UPI-1511 SERIES For LED Driver Applications |
Application: |
LED Driver Applications |
Size: |
15*18.4*11.5mm |
Inductance: |
47 - 10000uH |
Operating Temperature: |
-55°C To +125°C. |
Storage Temperature: |
-55°C To +125°C |
Product Name: |
SMD Power Inductor MOX-UPI-1511 SERIES For LED Driver Applications |
Application: |
LED Driver Applications |
Size: |
15*18.4*11.5mm |
Inductance: |
47 - 10000uH |
Operating Temperature: |
-55°C To +125°C. |
Storage Temperature: |
-55°C To +125°C |

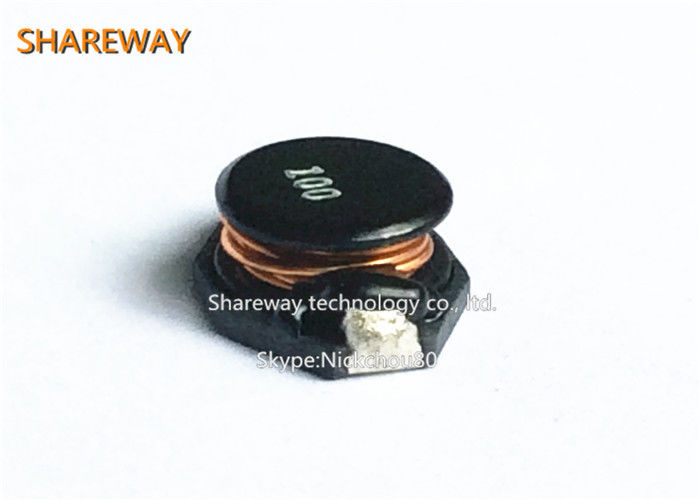

SMD Power Inductor MOX-UPI-1511 SERIES For LED driver applications
Description:
Surface Mount High Current Unshielded Power Inductors
MOX-UPI-1511 series of surface mount high current power inductors
are specially engineered for high current, low voltage DC-DC converter & LED
driver applications. The industrial grade rugged design provides current ranges
normally only available with larger packages
Features:
• Low cost.
• High current & low voltage.
• RoHS compliant.
ELECTRICAL SPECIFICATIONS @ 25°C
| Part Number | Inductance (μH) |
Tolerance (±) |
Test Frequency |
RDC (mΩ) Max. |
ISAT (Amps) |
Irms (Amps) |
| MOX-UPI-1511-470M | 47.00 | 20% | 1V/100KHz | 54.00 | 5.40 | 3.80 |
| MOX-UPI-1511-680M | 68.00 | 20% | 1V/100KHz | 74.00 | 4.50 | 3.20 |
| MOX-UPI-1511-101M | 100.00 | 20% | 1V/100KHz | 123.00 | 6.80 | 2.60 |
| MOX-UPI-1511-151M | 150.00 | 20% | 1V/100KHz | 188.00 | 3.10 | 2.10 |
| MOX-UPI-1511-221M | 220.00 | 20% | 1V/100KHz | 278.00 | 2.60 | 1.70 |
| MOX-UPI-1511-331M | 330.00 | 20% | 1V/100KHz | 368.00 | 2.10 | 1.50 |
| MOX-UPI-1511-471M | 470.00 | 20% | 1V/100KHz | 505.00 | 1.70 | 1.25 |
| MOX-UPI-1511-681M | 680.00 | 20% | 1V/100KHz | 795.00 | 1.50 | 1.05 |
| MOX-UPI-1511-102M | 1000.00 | 20% | 1V/100KHz | 1100.00 | 1.20 | 0.85 |
| MOX-UPI-1511-152M | 1500.00 | 20% | 1V/100KHz | 1590.00 | 1.00 | 0.65 |
| MOX-UPI-1511-222M | 2200.00 | 20% | 1V/100KHz | 2250.00 | 0.85 | 0.55 |
| MOX-UPI-1511-332M | 3300.00 | 20% | 1V/100KHz | 3580.00 | 0.70 | 0.45 |
| MOX-UPI-1511-472M | 4700.00 | 20% | 1V/100KHz | 5190.00 | 0.60 | 0.40 |
| MOX-UPI-1511-682M | 6800.00 | 20% | 1V/100KHz | 7680.00 | 0.50 | 0.35 |
| MOX-UPI-1511-103M | 10000.00 | 20% | 1V/100KHz | 10900.00 | 0.40 | 0.30 |
